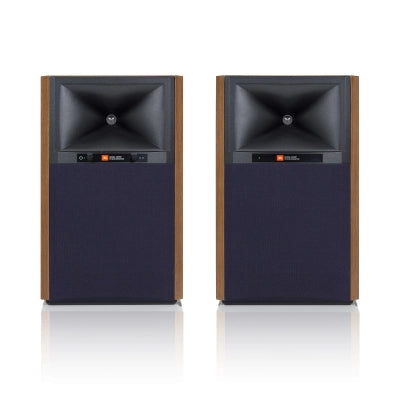

JBL - 4305P 5.25 Powered Studio Monitors - Walnut (Pair)

The JBL 4305P Studio Monitor is a completely self contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio.

A 24-bit/192kHz high-resolution DAC ensures your favourite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / 1/4" TRS phono input for use with balanced or unbalanced signals.

Features
• High-performance powered bookshelf loudspeaker system
• Patented JBL 2410H-2 1-inch (25mm) compression driver and High-Definition Imaging horn
• Patented JBL JW130P-4, 5.25" (130mm) Purepulp Black Paper Cone Woofers with Castframes
• 300W total system power and 24-bit/192kHz high-resolution DAC
• Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth wireless audio
• USB and optical digital inputs plus XLR / 1/4" TRS and 3.5mm analog inputs
• Available in Natural Walnut or Black Walnut furniture-grade wood veneer finishes
• Wireless remote included and available MusicLife app for control

Specifications
Type
Compact, Bass-reflex Loudspeaker System with Built-in
Amplification, DSP, and Wireless Connectivity

Low Frequency Drivers
JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone
Woofers with Cast-frames

High Frequency Drivers
2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm
Compression Drivers with Advanced HDI™ Geometry Horns

Amplifier Power
300W Class D System Power
150W RMS per Speaker
(25W per HF Compression Driver + 125W per LF Woofer)

Audio Resolution
Up to 24-bit, 192 kHz (Digital Link connection between spks)
Up to 24-bit, 96 kHz (Wireless connection between spks)

Frequency Response
45 Hz - 25 kHz (-6 dB)

Crossover Frequency
1,750 Hz

Dispersion
90° Horizontal x 60° Vertical (2kHz to 20kHz)

Sound Controls
Front Panel: Volume +/- and Source Selection
Bluetooth Remote
Boundary Compensation (Flat / -3dB)

Wireless Inputs
WiFi streaming, Bluetooth 5.1

Wired Inputs
Analog: XLR / 1/4" Combo and 3.5mm stereo
Digital: Asynchronous USB-B and Toslink/Optical

Supported Digital Audio Sample Rates (PCM 2CH)
Streaming & Local Media: 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz
SPDIF: Up to 192kHz
Bluetooth: Up to 48kHz

Music Formats Supported
AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA

Subwoofer Output
Autosensing w/ Auto-engage of 80Hz High Pass Filter

Remote Control Type
BTLE Wireless

Bluetooth Audio
Version 5.1
Profiles:
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Vido Remote Control Profile)

Enclosure
Bass-reflex Design with Dual Front-facing Ports
3/4" MDF Finished in Satin Walnut or Black Walnut Furniture-Grade Wood Veneer

Grille
Dark Blue (with Walnut Cabinet) or Black (with Black Cabinet)
Acoustically Transparent Cloth Grille

Net Speaker Dimensions with grille
13.2 x 8.3 x 8.8" (336 x 210 x 223.3mm)

Net Speaker Weight
Primary: 14.6 lbs (6.6kg)
Secondary: 14 lbs (6.4kg)

Gross Shipping Dimensions
18.13 x 23.5 x 11.38" (460.4 x 596.9 x 288.9mm)

Gross Shipping Weight
34.2 lbs (15.5 kg)

AC Input Voltage
100 - 240 VAC (+/-10%), 50/60Hz
