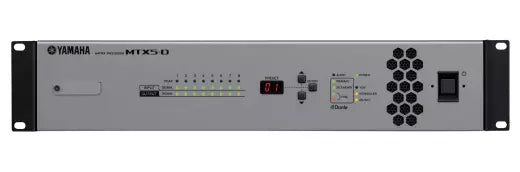

Yamaha - MTX5-D 34x16 Matrix Mixer and Signal Processor
Yamaha - MTX5-D 34x16 Matrix Mixer and Signal Processor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Heart of Your Sound Solution
Designed primarily for multi-zone commercial installations, MTX Series matrix processors are equipped with flexible processing functions that are essential to a wide variety of applications such as retail stores, restaurant/bars or banquet rooms. Responsible for the primary processing functions at the heart of your system's design, MTX processors allow you to configure, program, and manage your entire sound solution via the intuitive interface of the accompanying MTX Editor software application. The series is comprised of two models with varying DSP capacities and expansion capabilities, allowing MTX processors to meet the demands of a truly impressive range of commercial environments.
From a customer perspective, the ability to access simple control of their audio system is crucial, no matter how sophisticated that system is. For this reason, Yamaha provides a wide range of remote control options. These include simple DCP wall panels with wireless equivalents that can operate from an iOS or Android phone or tablet. Then, there is more sophisticated MCP1 programmable wall mount controller, PGM1 advanced paging station microphone and the fully customizable ProVisionare Touch and ProVisionaire Control Apps for iOS tablets and Windows devices respectively.
Features
• 8ch mic/line input and 8ch analog output
• 16ch YDIF digital I/O
• 16ch Dante digital I/O
• 1x MY Card slot
• SD Card Slot for playback
Specifications
- Mixing Channels: Mixing Channel: 16 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix
- Input Channel Functions: Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (available in ch 1-8)
- Output Channel Functions: Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter
- Phantom Power: +48V
- Internal Processing: Priority Ducking, Ambient Noise Compensator
- Sampling Frequency Rate (Internal): 48kHz/44.1kHz
- Signal Delay: Less than 3.0ms (AD-DA @48kHz)
- Total harmonic distortion: Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
- Frequency Response: 20Hz to 20kHz, +0.5dB, -1.5dB
- Dynamic Range: 107dB (Gain:-6dB)
- Hum & noise level/Equivalent input noise: -60dBu (Gain?+66dB), -83dBu (Gain?-6dB)
- Crosstalk: -100dB
- Heat Dissipation: 55.9kcal/h max
- Power Requirements: AC100V-240V 50Hz/60Hz
- Power Consumption: 65W
- Dimensions: 18.9 x 13.9 x 3.4" (480 x 351 x 88mm)
- Net Weight: 6.3kg (13.9lbs)
- Memory Bank : PRESET 50
