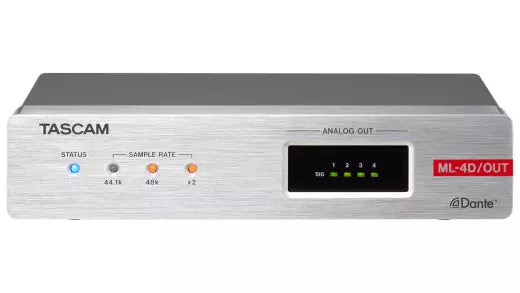

Tascam - 4-Channel Line Output Dante Converter with built-in DSP Mixer
Tascam - 4-Channel Line Output Dante Converter with built-in DSP Mixer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The ML-4D/OUT-E is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-E supports up to 96kHz/24bit and uses Euroblock connectors for analog line output.
The ML-4D/OUT-E not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.
Features
• 4 Dante input/output
• 4 balanced line output (Euroblock)
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz
• Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 4 in/4 out matrix mixer)
• Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
Flexible scene preset function allows to work in different area situations (Up to 50 presets)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:
For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
For simple control: simple app design for only the necessary functions such as area volume settings, etc.
• Remote control via GPI and Dante
• Half-rack mountable size
• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor line output signals
• Configurable reference level (via remote control only)
• Surface rack mountable angles for installation under desks included
Specifications
General
Formats and channels: 44.1/48/88.2/96kHz,16/24-bit, 4 channels
Input/output ratings
DATA/DATA+PoE connectors
Connector: RJ-45
Transmission protocol: Dante
Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
Cables: category 5e or faster STP cables
ANALOG OUT connectors
Connector: Euroblock (balanced) 3.81 mm pitch
Nominal output levels: +4 dBu (when Ref. Level not -9 dBFS)
+6 dBu (when Ref. Level set to -9 dBFS)
Maximum output level (switchable)+15 dBu (Ref. Level: -9 dBFS)
+18 dBu (Ref. Level: -14 dBFS)
+20 dBu (Ref. Level: -16 dBFS)
+22 dBu (Ref. Level: -18 dBFS)
+24 dBu (Ref. Level: -20 dBFS)
Output impedance: 200 ? or lower
Control input/output
External control connectors (CONTROL)
Connectors: Euroblock 3.81mm pitch
10V/CONTROL/GND connectors: Connect variable resistors (10k? recommended)
Other
Power: PoE class 0, TASCAM PS-P1220E AC adapter (sold separately)
Power consumption: 4W
Operating temperature range: 0°C-40°C
