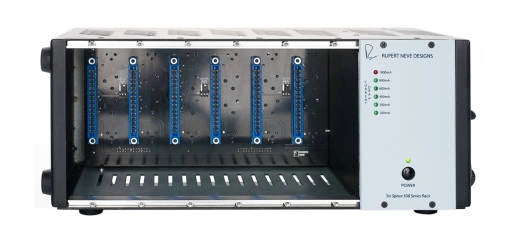

Rupert Neve Designs - R6 500 Series Rack - 6-Space
Rupert Neve Designs - R6 500 Series Rack - 6-Space is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
With abundant power and versatile connections, the R6 delivers peace of mind for engineers who demand a higher degree of confidence in their 500 series racks.
Power-wise, the R6 has more than 150% the required current for a 6-space chassis to prevent the power rails from failing under a higher-than-expected load. To help monitor and troubleshoot problematic modules, the R6 is equipped with LED current metering to show how much power is being used. The internal power supply itself has been carefully designed and double-shielded to avoid significant magnetic induction in any of the channel positions. With such attention to providing and monitoring power, the R6 helps your modules realize their fullest potential.
Features:
• 8 channels of balanced I/O options including DB-25, XLR and TRS that may be used interchangeably
• Convert DB-25, XLR or TRS connections to another format using the THRU functionality on channels 7-8
• Chassis is comprised of solid steel with bumpers to support the unit in both horizontal and vertical configurations, and features a collapsable handle for portability
• All connectors and fittings are of the highest quality to ensure that the R6 will hold up to many years of use
• Will work flawlessly with any properly-designed 500 series module you wish to include in it
• To help accommodate modules that are slightly out of spec, the R6 has variable-position screw holes to help make the installation process as smooth as possible
• 500 series VCA buss link function can be enabled in pairs on the R6 using the link jumpers on Channels 1-2, 3-4, or 5-6. Enabling link allows compatible compressor modules like the 543 to share VCA control when their links are enabled
• Matching blank panels are also available to cover any empty slots
Specifications:
• DC Voltage to Units: +/-16VDC and +48VDC for phantom power
• Max Current: 1000mA for modules, 150mA for 48V phantom power
• Power Requirements: 100-240VAC, 50/60Hz, 50 Watts
• Weight: 9.5lbs
• Dimensions: 13x 7.5 x 5.5 in.
