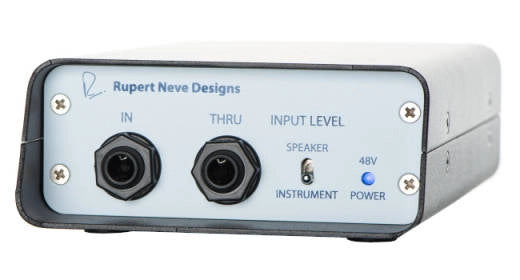

Rupert Neve Designs - Active Transformer DI
Rupert Neve Designs - Active Transformer DI is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
With a Rupert Neve-designed transformer and a class-A biased discrete FET amplifier, the RNDI elegantly balances any instrument signal - whether straight from a bass guitar or from a screaming 100w amp.
RNDI's unique response delivers a powerful and vibrant direct sound capable of reproducing the full harmonic depth of basses, guitars, acoustic instruments, and professional line level sources. With portable, powerful, larger-than-life tone for your instrument and amplifier signals, the RNDI is truly the first standalone DI worthy of the Rupert Neve name.
Features:
• Groundbreaking Direct Tone - where class-A, discrete amplifiers meet Rupert's custom transformers.
• Huge Headroom - the high input headroom of +21.5dBU is capable of handling professional, line level sources without a pad and in speaker mode, the RNDI can handle the full output of a 1000-watt power amplifier (92 Vrms or 266Vp-p).
• Rugged Solid-Steel chassis features an industrial-grade powder coating, and is built to withstand the severe stresses of life on the road.
• Takes All Kinds - the RNDI has immensely consistent performance across a wide variety of sources due to its 2M Ohm discrete FET input and high headroom. In instrument mode, you can even connect a professional line level interface output to "Re-Preamp" a previously recorded source.
• Drive Longer Lines - the low impedance transformer coupled output below 50 ohms is capable of driving long lines with unrivaled high frequency performance.
• 1/4" THRU Output - In instrument mode the THRU output can feed the amplifier input for reinforcement. In speaker mode, the THRU is used to feed the amplified signal to the speaker.
• Best in Class Phase Coherence - excellent at all frequencies, which keeps the sound well-balanced and natural, and is especially vital when blending the direct signal with a microphone capture of the same source.
• Ground Lift switch on the back helps fix any problematic grounding.
• Phantom Powered.
Specifications:
Noise: Measured Output, un-weighted, 22Hz-22kHz, source impedance 150 Ohms to 10K Ohms - Better than -110dBV
Input Impedance:
- Instrument Setting: 2.2 Meg Ohm
- Speaker Setting: 200k Ohm
Output Impedance: Less than 40 Ohms
Frequency Response:
+/- 0.25dB from 25Hz 44kHz
+/- 1dB from 12.5Hz 63kHz
-3dBu @ 92kHz
Maximum Input Level: Instrument = +21dBu Typical Speaker = +41.5dBu, 92 Vrms (266Vp-p)
Maximum Output Level: +11.5dBu output at maximum input level
Total Harmonic Distortion plus Noise:
@ 1kHz, +20dBu input level: 0.25% Typical (2nd and 3rd harmonic)
@ 1kHz, -20dBu input level : 0.015% Typical (2nd and 3rd harmonic)
@ 20Hz, -20dBu input level : 0.75% Typical (2nd and 3rd harmonic)
Power Requirements: Phantom power, 4.5mA @ +48VDC
Weight: 1.5lbs
Dimensions: 6.25" long x 4" wide x 1.5" high
