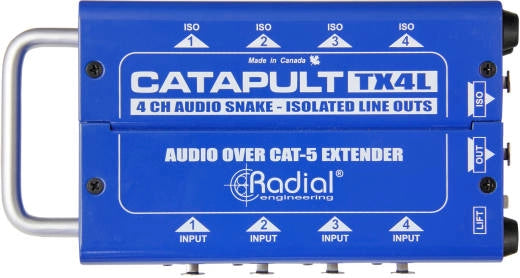

Radial - Catapult TX4L 4-Channel Cat-5 Line-Level Audio Snake - Transmitter

The Catapult TX4L and RX4L are four-channel line level splitters and isolators that allow you to split four audio channels and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split line level signals between three different destinations, either on stage or using a buildings existing Cat 5 or Cat 6 cabling to route the signal. Each unit features line level isolation transformers which help to eliminate buzz and hum caused by ground loops, saving hours of troubleshooting. The TX4L has four XLR-F inputs and four isolated XLR-M outputs, while the RX4L has four direct XLR-M outputs and four isolated XLR-M outputs. Both units feature RJ45 type Ethercon connections with ground lift switches.

Mix & Match to add transformer isolation
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult RX4 and TX4 can be used together as a pair, creating a 4-channel audio snake. However, if you need transformer isolation to prevent hum and buzz when splitting audio signals, two additional models of Catapults are available. The TX4L and RX4L have line level isolation transformers for splitting playback tracks or outputs to amp racks, while the TX4M and RX4M can be employed when splitting mic signals on stage. Use any combination of these six models, along with the compact Catapult Mini RX and TX to create a custom snake designed for your unique application.

Features
• For Routing Line-Level Audio via Cat5/6
• For Use with Catapult RX4L
• 4 x XLR Inputs
• 4 x Line-Level Isolated Outputs

Specifications
Audio circuit type: Passive line splitter, transformer based
Frequency response: 7Hz ~ 20KHz
Total harmonic distortion: 0.0007% @ 1kHz
Dynamic range: 140dB
Gain: 0db/-5.7dB
Maximum Input: +35dBu
Minimum load impedance: 100 ohms
Common mode rejection: > 113dB
