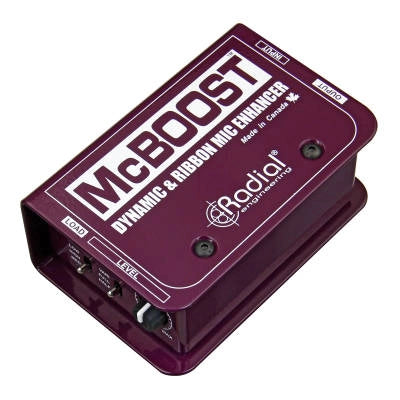

Radial - McBoost 25dB Signal Booster for Dynamic & Ribbon Microphones

The Radial McBoost is a high performance microphone signal booster designed to elevate the output of a typical dynamic microphone for greater transient response and boost the signal of a low-output ribbon mic to bring it up to a usable level for mixing consoles or preamps that may not provide sufficient gain.

• 25dB signal booster for dynamic & ribbon mics
• Extends dynamic range and microphone reach
• Uses standard 48V phantom for power
• 3-position load switch and variable gain

The 100% discrete class-A circuit design begins with a dual-transistor J-FET circuit to produce up to 25dB of gain without introducing noise, color or artifact. Each individual transistor is carefully measured and batch-sorted to comply with the design specification to certify performance. As with all Radial products, the circuit board is then loaded into a 14-gauge, I-beam, reinforced steel enclosure to prevent outside stress from torquing which otherwise could lead to premature part failure. A book-end cover creates protective zones at each end to safeguard the switches, potentiometer and connectors from the rigours of the road.

Merely connect the McBoost in-line using standard 3-pin XLRs and activate 48V phantom to provide power, then select between three impedance settings to optimize the response from the microphone. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage or in a broadcast center.
