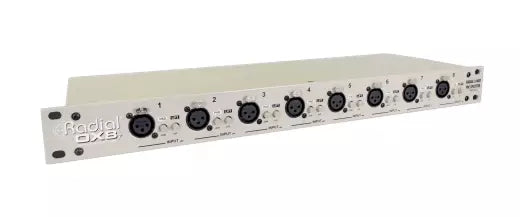

Radial - Rackmount Mic-Level Passive Splitter with Radial Transformers

The Radial OX8 is a professional audio tool that is equally at home on a live stage as it is in a broadcast studio, splitting eight microphone signals to multiple destinations simultaneously without noise or distortion, and eliminating hum and buzz from ground loops. Each channel is configured with a balanced input, a direct out which also serves as a return path for 48V phantom power, a thru-put with a ground lift switch, and a fully transformer-isolated output.

Connectivity includes front panel XLR input connectors which are wired in parallel with a choice of either DB25 D-subs or screw type Euro-block (Phoenix) for hard wiring. There are three sets of outputs. These include: a direct feed and phantom power return for the main mixer; a direct feed with front panel ground lift switch for monitors; and an isolated feed from the transformer for recording.

Plug and play easy to use, the Radial OX8 is 100% passive and therefore requires no power to make it work. This makes the Radial OX8 ideal for field recording systems and in permanent venue installations where microphones or balance line level signals may have to feed various consoles or recording systems.

Features
• Balanced 8-channel microphone signal splitter
• Delivers high quality audio without distortion
• Eliminates hum and buzz caused by ground loops
