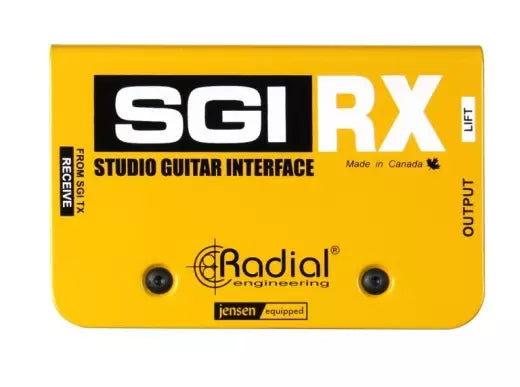

Radial - SGI RX Studio Guitar Interface - Reciever
Radial - SGI RX Studio Guitar Interface - Reciever is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Radial SGI is a high performance line driver that takes an unbalanced guitar signal and allows you to drive it as far as 100 meters (300ft) without noise. In the studio, it allows the guitarist to sit in the control room and connect to a distant guitar amp. On stage, the SGI can be used to play the guitar amp using off-stage isolation cabinets or be used to manage guitar signals to and from wireless systems, pedalboards and amplifiers.
The SGI consists of two boxes: the SGI-TX transmitter and the SGI-RX receiver. The connection between the TX and RX is made using a standard balanced XLR microphone cable. To use, you simply plug your guitar into the SGI-TX input and connect your amp from the SGI-RX output and you are set to go. The SGI does all of the balancing, buffering and impedance matching for you.
The real magic occurs inside. The design begins with full size 100% discrete parts with Radial's award winning class-A buffering circuit design. This is augmented with Drag Control load correction that lets you replicates the tone and feel as if connecting a guitar directly to a tube amplifier. To ensure noise free performance the system is transformer isolated, eliminating hum and buzz caused by ground loops. And with artists as diverse as Carlos Santana, Eric Clapton, Jeff Beck, Joe Perry and Metallica all using the SGI, you can rest assured the tone of your guitar will sound the way it should.
Features
• Balanced line driver for guitars and bass
• Send signal over 100 meters (300 feet) without loss
• 100% discrete class-A with Drag Control
• Delivers pure sound without artefact
• Now equipped with premium Jensen Transformers
Specifications
- Audio circuit type: Active 100% discrete class-A with transformer isolation
- Frequency response: 20Hz - 18kHz (-2dB)
- Signal to noise ratio: 102dB (0dBu input)
- Dynamic range: 112dB
- Noise floor: -102dBu
- Maximum input: +10dBu
- Total harmonic distortion: 0.005% @ 1k
- Inter-modulation distortion: 0.04% @ 1k
- Input impedance: Variable from 10k Ohms - 1 megaOhm
- Output impedance: 4.5k Ohms (1/4" unbalanced)
- Instrument output: 1/4" unbalanced output
- SGI-RX input: Bal. XLR input (Studio Guitar Interface)
- XLR configuration: AES standard (pin-2 hot)
- Power: +15VDC/400mA adapter included
- Construction: 14 gauge steel chassis & outer shell
- Finish: Durable powder coat
- Size: (W x H x D) Size: 2.75" x 4.25" x 1.75" (70 x 108 x 44mm)
- Weight: 3lbs. (1.36kg)
