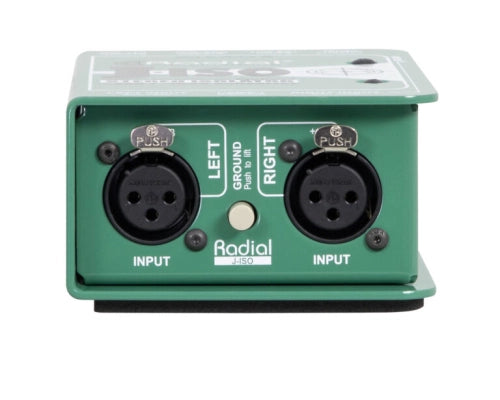

Radial - J-ISO Passive Stereo Converter
Radial - J-ISO Passive Stereo Converter is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Radial - J-ISO Passive Stereo Converter is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Radial J-Iso is a pro to consumer signal converter. It is designed to take a +4dB balanced line level and bring this down to a -10dB unbalanced format for easy manipulation with computers, hand held recorders and other unbalanced systems. Set and forget controls allow the system tech to set levels for optimal signal transfer. The J-Iso and Pro-Iso differ with respect to the transformer and audio signal path. The J-iso is designed to deliver full bandwidth audio while the Pro-Iso is band limited for the voice range.
Features
• XLR Inputs - +4dB balanced inputs follow AES standards for easy interface with professional gear
• Ground Lift - disconnects ground at the XLR pin-3. Helps eliminate hum and buzz caused by ground loops
Specifications
Audio circuit type: Passive, transformer based
Transformer: Jensen JT-11-YMPC
Number of channels: Stereo (dual mono)
Frequency response: 20Hz - 20KHz (+0dB/ -1.5dB)
Dynamic range: 130dB
Total harmonic distortion: 0.001% @ 1kHz
Phase Deviation: 0.5° @ 100Hz; 1° @ 20Hz
Input Impedance: 1.3k Ohms, balanced
Output Impedance: 200 Ohms, unbalanced (when output control is set to max)
Common Mode Rejection Ratio: -58dB
Maximum Input: +20dBu @ 1kHz/1% THD+N
