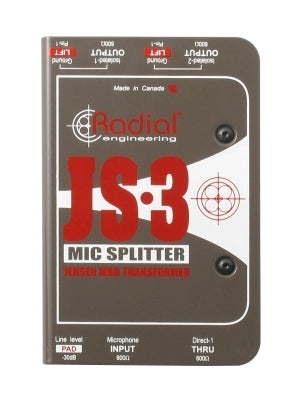

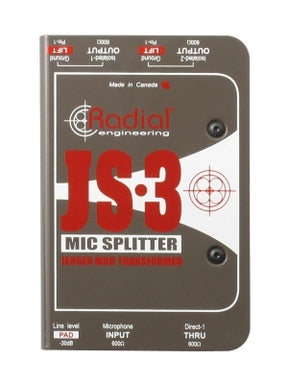

Radial - JS3 3-Way Microphone Splitter
Radial - JS3 3-Way Microphone Splitter is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Rimouski
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more*
-
Processing: All orders are prepared and shipped within 24 hours (Monday to Friday).
-
Shipping Time: Delivery typically takes 3 to 7 business days. For faster delivery, please select Express Shipping at checkout.
- *Certain regions and products are excluded from free shipping due to size, weight, or destination.
Radial - JS3 3-Way Microphone Splitter is backordered and will ship as soon as it is back in stock.
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Passive 3-way Microphone Splitter
The JS3™ is a high performance balanced mic-level splitter designed to send a signal to multiple destinations simultaneously, with two transformer-isolated outputs and one direct output.
Portable mic splitting on stage or in the studio
The JS3 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Features
• Send one microphone signal to three destinations simultaneously
• Jensen transformer-equipped for exceptional audio quality
• Eliminates hum and buzz caused by ground loops
• Dual isolated outputs provide optimal noise rejection
Specifications
Audio circuit type: Passive mic/line splitter, transformer based
Transformer: JT-MB-DPC, 1:1:1 ratio
Number of channels: Three-way splitter (one in/three out)
Frequency response: 20Hz ~ 20KHz (+0dB/ -2dB)
Dynamic range: 140dB
Total harmonic distortion: 0.0005% @ 1kHz
Phase Deviation: 0.7° @ 100Hz; 2.8° @ 20Hz
Input Impedance: Source dependent, 10k? with Pad on, unbalanced
Output Impedance: Source dependent, 10k? with Pad on, unbalanced
Maximum Input: +25dBu @ 1kHz
Features
Input pad, Ground lift
Input Connectors: XLR-F in
Output Connectors: Two isolated outputs
General
Construction: 14-gauge steel chassis & outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48 mm)
Weight: 1.55 lb (0.7 kg)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
