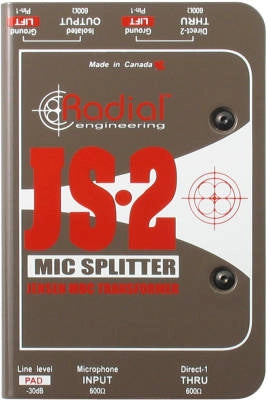

Radial - JS2 Passive 2-Way Microphone Splitter
Radial - JS2 Passive 2-Way Microphone Splitter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The JS2™ is a high performance balanced mic-level splitter designed to send a signal to multiple destinations simultaneously, with one transformer-isolated output and two direct outputs.
Portable mic splitting on stage or in the studio
The JS2 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Applications
JS2 for a 2-way split
The Radial JS2 is the perfect interface for splitting a microphone to feed more than one mixer at the same time. 100% isolation eliminates potential ground loops between the two consoles for quiet performance. The main output provides a 48V phantom power return path to the mic.
JS2 to compare two mic preamps
In the studio, it is often advantageous to compare the sound of two mic preamps on a particular voice. The JS2 is ideally suited for this as it will not color the sound of the mic or add distortion. The plug & play simplicity makes set up quick.
Features
• Send one microphone signal to three destinations simultaneously
• Jensen transformer-equipped for exceptional audio quality
• Eliminates hum and buzz caused by ground loops
• Single isolated output provides optimal noise rejection
• Completely passive, no power needed
Specifications
Audio circuit type: Passive mic/line splitter, transformer based
Transformer: JT-MB-CPC, 1:1 ratio
Number of channels: Three-way splitter (one in/three out)
Frequency response: 20Hz ~ 20KHz (+0dB/ -2dB)
Dynamic range: 140dB
Total harmonic distortion: 0.0005% @ 1kHz
Phase Deviation: 0.7? @ 100Hz; 2.8? @ 20Hz
Input Impedance: 2.4k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +25dBu @ 1kHz
