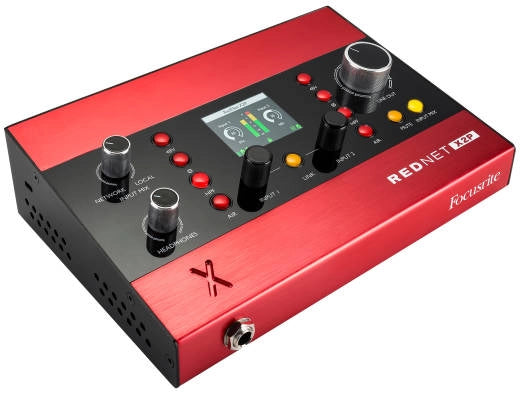

Focusrite - RedNet X2P 2x2 Dante Audio Interface w/ Red Evolution Mic Pres

2x2 Analogue I/O With 2x Mic Pres, Headphone And Line Output, PoE Supplied
RedNet X2P is a compact, portable and robust 2x2 Dante audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P allows you to effortless add a high quality Dante audio interface by integrating power, audio, clock and remote control over a single Ethernet cable - simply use a power over Ethernet switch or PoE injector. A local input mixer allows 'more me' monitoring control, while a control lockout mode ensures settings can not be changed when used remotely.

The two digitally-controlled Red Evolution mic pres provide large amounts of ultra-clean gain along with stereo linking, individual phantom power, a high-pass filter and phase reverse. Plus they include Air mode, emulating the sound of Focusrite's classic transformer-based mic preamps. RedNet X2P provides high-performance audio conversion with over 118dB dynamic range. These converters have been expertly selected and calibrated to provide the best balance of sound quality, dynamic range and conversion latency.

Sometimes it helps to have direct foldback within the interface, so RedNet X2P features a crossfader to enable you to control the level of local inputs versus network inputs that feed either the line outputs or the headphone outputs. The unit can be mounted directly to a mic stand, keeping it out of the way and within reach.

Flexible control locks enable you to lock out local control of mic pre settings, output settings or both. Leave RedNet X2P with your artists and allow them to adjust their headphone mix and level, safe in the knowledge that they cannot accidentally adjust the mic pre gain.

Features
• Two of the best preamps provide ultra-clean gain, stereo linking, individual phantom power, a high-pass filter, phase reverse and Air mode.
• High-quality conversion, with over 118dB dynamic range.
• Power-over-Ethernet allows a single cable to deliver audio, control and power to RedNet X2P.
• Local input mix allows 'more-me' style monitoring for easy foldback control.
• Mic stand mount keeps the unit out of the way and within reach.
• Local control lockout of mic pre settings, output settings or both.

Specifications
MICROPHONE/ LINE INPUTS
• Gain Range: 0dB to 68dB in 1dB steps
• Type: Electronically Balanced, Zin = 6.2kO
• Max. Input Level: >+24dBu, min gain
• Frequency Response: 20Hz - 35kHz 0.1dB
• THD + N: -103dB (0.0007%) @ -1dBFS (@ 24dB Gain)
• EIN: +15dBu, min gain
• Instrument Inputs Frequency Response: 20Hz - 35kHz 0.1dB
• Instrument Inputs Signal-To-Noise Ratio: -118dB 'A'-Weighted (typical), min gain
• Instrument Inputs HPF: High-Pass Filter (HPF): -3dB @ 80 3Hz, 12dB/Octave, independently switchable per channel

LINE LEVEL OUTPUTS
• Line Level Outputs 0 DBFS Reference Levels: +18 or +24dBu (switchable)
• Line Level Outputs Frequency Response: 20Hz - 35kHz +/-0.1dB
• Line Level Outputs Dynamic Range: -120dB 'A'-Weighted (typical), 20Hz - 20kHz

HEADPHONE OUTPUT
• Headphone Output 0 DBFS Reference Levels: >+19dBm
• Headphone Output Frequency Response: 20Hz - 20kHz 0.2dB
• Headphone Output Dynamic Range: 117dB 'A'-weighted (typical), 20Hz - 20kHz
• Headphone Output Impedance: 5O
• Headphone Impedance: 32O - 600O

MICROPHONE/ LINE CROSSTALK
• Mic/Line Input To Input: < -72dB; 20Hz - 20kHz (driven channel at -20dBFS)
• Mic/Line Input To Output: < -126dB; 20Hz - 20kHz (driven channel at -20dBFS)
• Output To Mic/Line Input< -159dB; 20Hz - 20kHz (driven channel at -20dBFS)

OUTPUT CROSSTALK
• Output To Output: < -101dB; 20Hz - 20kHz (driven channel at -20dBFS)

HEADPHONE CROSSTALK
• Right To Left: < -85dB; 20Hz - 20kHz (driven channel at -20dBFS)

DIGITAL PERFORMANCE
• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
• Clock Sources: Internal or from Dante Network Master.

FRONT PANEL CONNECTIVITY
• Headphone Outputs: 1 x 1/4" stereo jack

REAR PANEL CONNECTIVITY
• Inputs Mic/Line/Inst Inputs: 2 x Locking Combi XLR
• Outputs - Line Outputs: 2 x Male XLR

PSU & NETWORK CONNECTIONS
• PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector.
• Network: 2 x etherCON connectors, also compatible with standard RJ45 connectors.

TOP PANEL INDICATORS
• LCD Screen: 1 x Screen (Status & Metering)

POWER
• Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 • Power-over-Ethernet standard (PoE A or PoE B compatible)
• DC Power Supply: 1 x 12V 1.2A DC Power Supply.
• Power Consumption: PoE: 11.0W - DC: 13.32W (When using supplied DC PSU)

HEAT PERFORMANCE
• Operating Temperature: Operates at up to an ambient temperature of 45 degrees Celcius
