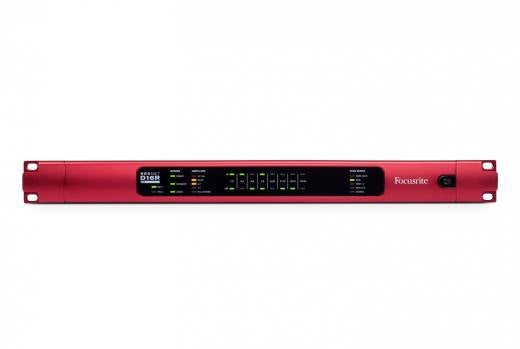

Focusrite - RedNet D16R 16-Channel AES/EBU to Dante Digital Audio Interface

16-channel AES3 I/O for Dante Audio over IP networks

RedNet D16R AES is a 1U, 19in rack-mount Dante interface featuring 16 channels of AES/EBU connectivity to and from the Dante audio network. Perfect for bridging between digital consoles, power amplifiers or any other AES3-equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source. Word Clock I/O and DARS (Digital Audio Reference Signal) connections allow synchronisation with a wide range of external sources and hardware, while S/PDIF I/O allows the integration of equipment such as CD or solid state recorders/players. The D16R features a rugged, roadworthy exterior and high internal build quality, with Ethernet and power supply redundancy for maximum reliability. In addition, the unit offers a compact 1U rack-mount form factor.

Key Features:

• 16 Channel bi-directional RedNet AES3 Interface for Dante Networks
• Power supply and Ethernet redundancy with auto switchover in case of failure, and locking etherCON network connectors.
• Sample rate conversion allows external equipment to run at any sample rate
• Compact 1U chassis allows maximum functionality in minimum rack space
• Two 8-channel AES59 combined I/O DB25 connections, plus a pair of XLR3 connectors duplicating channels 1 & 2
• Rear panel XLR input connector either be used as a DARS input or as a traditional AES3 audio input
• S/PDIF input and outputs provided on RCA connectors; ideal for connecting CD players or solid-state recorders
• Word Clock I/O on BNC connectors allows synchronisation of the Dante network to house clock, or syncing external equipment to the Dante network
• RedNet Control and Dante control software allow routing and control from your audio computer system via a software control panel no hardware patching required

Specifications:

INPUT SAMPLE RATE CONVERTERS

Sample Rate Range: 32 to 216 kHz
Gain Error: -0.3dB
Dynamic Range: > 138dB (-60 dBFS method)
THD + N: < -130dB (0.00003%); 0 dBFS input
Latency: 11 to 45 samples (network and input sample rate dependent).

DIGITAL PERFORMANCE

Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources: Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master.
External Word Clock Range: Nominal sample rate +-7.5%

REAR PANEL CONNECTIVITY

AES/EBU
Channel Count: 16 x 16 AES/EBU channels
Input and Output: 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
Alternate Input (optional DARS): 1 x Female XLR (replaces DB-25 channels 1-2)
Alternate Output: 1 x Male XLR (duplicates DB-25 channels 1-2)

S/PDIF
Channel Count: 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)
Input: 1 x RCA phono socket (replaces DB-25 channels 3-4)
Output: 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)

WORD CLOCK

Input: 1 x BNC 75? port (switchable termination)
Output: 1 x BNC 75? port

PSU & Network Connections

PSU: 2 x IEC Inputs with retaining clips.
Network: 2 x etherCON connectors, also compatible with standard RJ45 connectors.

NETWORK MODES

Redundant: Allows unit to connect to two independent networks.
Switched: Connects both ports to integrated network switch allowing daisy-chaining of devices.

DIMENSIONS

Height: 44.5mm/ 1.75"
Width: 482.6mm/ 19"
Depth: 263mm/ 10.35"

Weight: 3.84kg

POWER

PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA.
