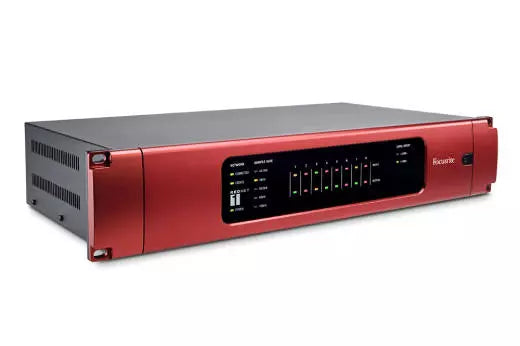

Focusrite - RedNet 1 - 8-Channel A/D-D/A Converter

With the RedNet 1 interface, eight channels of high quality AD and DA conversion can be connected to your RedNet network through a single Ethernet cable. Embodying the most advanced digital audio conversion designs on the market, this superb interface features Focusrite's precision 24-bit AD and DA conversion with a dynamic range of 120dB, sample rates up to 192kHz and JetPLLTM technology for ultra-low-jitter clock recovery.

Focusrite has many years of experience in both analogue and digital conversion design, and RedNet 1 couples that excellence with the extraordinary versatility, flexibility and performance of the DanteTM audio networking system. Thanks to this perfect technological partnership, the RedNet 1 interface can be easily matched with any combination of additional RedNet interfaces enabling up to 128 inputs and 128 outputs. Using the optional RedNet PCIe card, extremely low latency can be achieved, under three milliseconds at any sample rate.

The Dante advantage
RedNet is a powerful digital audio system that will change the way you build and operate a studio forever. At its heart is the robust, tried-and-tested digital audio networking technology Dante, by Australian company Audinate. Dante uses standard IP-based networking and components, such as Ethernet cables, routers and switches, to carry up to 256 channels (128 in / 128 out) of high-resolution digital audio over a standard Ethernet network. Dante has been in use for some time in the live sound field where it's fast becoming a standard, endorsed by pro-audio companies such as Yamaha, and by sound reinforcement companies, including Britannia Row, who rely on it for major live events on a regular basis. Before deployment in live sound environments, Dante systems are routinely tested for up to a week without the loss of a single sample.

Features
Pristine audio quality with low latency
RedNet 1 stands up to the sonic demands of the professional studio with 120dB dynamic range and less than 3ms latency when using the RedNet PCIe Card.
The easiest installation - ever
One Ethernet cable is all it takes. The RedNet 1 is instantly recognized by the system as soon as it is connected and can be remotely controlled through the RedNet control software.
Pro-audio
With 24-bit operation at up to 192kHz sampling and JetPLLTM jitter-reduction technology, RedNet 1 is a professional audio interface supporting the needs of any studio.
Renowned Focusrite design
RedNet interfaces recall the form and sheer reliable solidity of our famous Red Range. Sampling rate, operating levels and metering are clearly visible on the front panel.

Specifications
Dynamic Range: 120dB
THD+Noise (input and output): < 0.001%
Input and output: 0 dBFS reference levels +18dBu (EBU) or +24dBu (SMPTE-RP155)
JetPLLTM technology minimizes jitter in the conversion process
Supported sample rates: 44.1, 48, 88.2, 96, 192kHz
