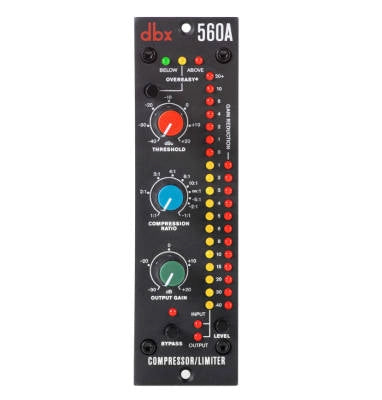

dbx - 560A Compressor/Limiter
dbx - 560A Compressor/Limiter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The dbx 560A Compressor/Limiter offers legendary VCA-based compression in the increasingly popular 500 Series format. dbx has a much-heralded history with modular processors dating back to our 900 Series and the 560A continues that tradition.
Featuring the same switch-selectable OverEasy and Hard Knee compression curves as the industry-standard dbx 160A rackmount processor, the dbx 560A will be your new workhorse compressor! With extremely wide-ranging threshold, ratio and output controls and true RMS level detection providing the most natural-sounding dynamics processing available, the 560A will provide punch to drums, bass, vocals, almost anything! It's also versatile enough to go from subtle compression to "brick wall" peak limiting.
Choose low ratios and OverEasy compression to expertly smooth out fluctuating vocal and instrumental levels, or use the 560A's Hard Knee compression and high ratios for bombproof protection against overload distortion in digital recording, P.A. systems and broadcast signals.
The 560A's 19-segment, switchable Input/Output LEDs and 12-segment Gain Reduction LEDs provide precise analysis at a glance. And, the dbx 560A's unique "INFINITY +" inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds threshold, a real lifesaver for correcting overbearing vocal choruses and controlling runaway mix levels.
Load up your 500 Series rack with some dbx 560A Compressor/Limiters and go to work!
Features:
• OverEasy or classic hard knee compression with dbx's ultra-musical program dependent attack and release times
• Compression ratio variable from 1:1 through infinity:1 to -1:1
• Precise RMS gain reduction and input/output meter displays with calibration control for different operating levels
• True RMS level detection
• Exclusive Infinity+ compression using negative ratios
Specifications:
• Input Type: Electronically balanced/unbalanced, RF filtered
• Input Impedance: 40kOhms balanced, 20kOhms unbalanced
• Maximum Input Level: +22dBu
• CMRR: >40 dB; typically >55 dB at 1 kHz
• Output Type: Electronically balanced/unbalanced, RF filtered
• Output Impedance: Balanced 30 ohms , unbalanced 15 ohms
• Maximum Output Level: +22dBu
• Frequency Response: 20 Hz - 20 kHz, + 0/-0.5 dB; 0.5 Hz - 100 kHz, +0/-3 dB
• Noise: -97 dBu, Unweighted (22 Hz - 22 kHz)
• THD+Noise: 0.005% typical, No compression, 1 kHz input at 0 dBu; 0.07% typical, Any Amount of Compression up to 40 dB @ 1 kHz
• Dynamic Range: >119 dB
• Compression Gain Adjustment Range: Variable from -20 dB to +20 dB
• Compressor Threshold Range: -40 dBu to +20 dBu
• Compressor Threshold Characteristic: Selectable OverEasy or Hard Knee
• Compressor Attack Time: Program-Dependent; Typically 15ms for 10dB, 5ms for 20dB, 3ms for 30dB
• Compressor Release Time: Program-Dependent; Typically 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/Sec Rate
• Power Requirements: +/- 16VDC
• Current Draw: 60mA per power rail
• Power Draw: 1.92 watts
• Rack System Compatibility: 500 Series Compatible Power-frame
• Rack Space: 1 Slot
• Dimensions (H x W x D): 5.25" x 1.5" x 6" (13.34cm x 3.81cm x 15.24cm)
• Weight: 1.3 lbs (0.59 kg)
