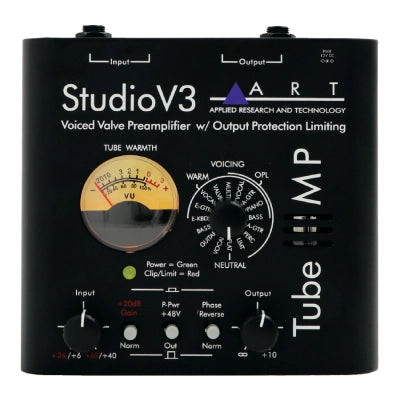

ART Pro Audio - Tube MP Studio V3 Tube Microphone Preamp with Variable Valve Voicing

The Tube MP Studio V3™ features ART's new V3™ (Variable Valve Voicing™) Technology - found only in ART microphone preamplification systems.

V3™ provides optimized reference points to begin the recording process. The V3™ presets were created and fine-tuned by some of the industry's top studio and live-sound engineers, along with ART's veteran engineering department. V3™ allows you to select between a multitude of preamp settings designed for guitars (electric and acoustic), keyboards, bass guitars, drums, vocals and more. V3™ gives you incredible presets for every instrument you record, so all your recordings will sound professional.

The Tube MP Studio V3™ also features ART's OPL™ Output Protection Limiter, which precisely and accurately controls and maintains the output peak signal. The OPL circuitry is crucial in protecting the next link in a signal chain - such as a hard-disk recording system or a sound card.

Whether you're working with a computer, hard-disk, or digital multitrack recorder, the Tube MP Studio V3's design delivers professional recording studio results at a fraction of the cost of comparable equipment. While its primary application is to be used with a microphone, the Tube MP Studio V3 is an exceptional direct box - impedance matching, amplifying and improving the sound of any instrument plugged into it.

Features
• Provides Superior Preamplification for: Microphones, Instruments and Line Level Sources
• V3™ Variable Valve Voicing
• OPL™ Output Protection Limiting
• Hand Selected 12AX7A Provides 70dB of Gain
• Smooth, Warm and Fat Sound Quality
• Variable Input and Output Gain Controls
• Excellent as a Tube DI
• XLR and 1/4" Inputs and Outputs
• +48 Volts of Phantom Power
• Phase Reversal Switch
• TEC-Award Nominated Design
• Rugged All-Steel Construction

Specifications
Input Connections
- XLR (balanced), 1/4" TS

Output Connections
- XLR (balanced), 1/4" TS

Input Impedance XLR, 1/4"
- 3K ohms, 840K ohms

Output Impedance XLR, 1/4"
- 600 ohms, 300 ohms

Maximum Input Level, XLR
- +14dBu

Maximum Input Level, 1/4"
- +22dBu

Maximum Output Level, XLR
- +28dBu

Maximum Output Level, 1/4"
- +22dBu

CMRR
- 75dB (typical @ 1kHz)

Frequency Response
- 10Hz to 30kHz, +/-0.5dB

Dynamic Range
- 100dB (20-20kHz) typical

Total Harmonic Distortion (THD)
- 0.1% (typical)

Maximum Gain
- XLR to XLR 70dB (typical)
- 1/4" to 1/4" 54dB (typical)
- XLR to 1/4" 64dB (typical)
- 1/4" to XLR 60dB (typical)

Equivalent Input Noise (EIN)
- XLR to XLR -125dBu (A weighted)
- 1/4" to 1/4" -105dBu (A weighted)
- Tube Type 12AX7A, Dual Triode, Hand Selected

Power Supply Requirements
- Input 100-240V AC~50/60Hz
- Output 12V DC @ 800mA

Dimensions (HWD)
- 2 x 5.5 x 5" (50.8 x 139.7 x 127 mm)

Weight
- 1.5 lbs. (0.680 kg.)
