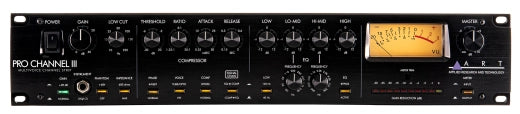

ART Pro Audio - Pro Channel III Multivoice Channel Strip
ART Pro Audio - Pro Channel III Multivoice Channel Strip is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The Pro Channel III is a fully-featured channel strip with selectable mic impedance, two compression voicings, and semi-parametric EQ. New to this version, the compressor has both Tube/Opto and FET modes for smooth or punchy dynamic control. The compressor and EQ sections can now be reordered at the touch of a button, and the front panel has been streamlined for a faster, simpler workflow. The mic preamp features a discrete FET input stage and up to 60 dB of preamp gain, with a variable low cut filter to eliminate rumble and tighten bass.
The EQ section offers a switchable low shelf frequency, variable low-mid and high-mid frequencies with over 4 octaves of range per band, and a 12 kHz high shelf. The Pro Channel III is also a versatile instrument DI. Connecting to the front 1/4" input will override the rear XLR input so you can record direct tracks without disconnecting your mic or line signal.
Designed for recording musicians seeking a versatile character preamp with real tube warmth, the Pro Channel III offers the flexibility and fidelity to sculpt and enhance any source.
Features
• Class A FET Microphone Preamp
• Selectable Microphone Impedance
• 1/4" High Z Input on Front Panel
• Compressor and EQ Sections with Switchable Order and Independent Bypass
• Tube/Opto and FET Compressor Voicings
• 4-Band Semi-Parametric EQ and Variable Low Cut Filter
• Insert Point after Preamp Stage
• +4 dBu or -10 dBv Operation
• Universal Internal Power Supply
Specifications
- Frequency Response: 12 Hz - 100 kHz (+0, -1 dB)
- Dynamic Range: 110 dB A-Weighted
- CMRR: 90 dB
- THD: 0.009% (Typical @ 1k)
- Equivalent Input Noise: -128 dBu (Mic / Line), -109 dBu (Instrument), Input Short, Max Gain, A-Weighted
- Maximum Input Level: +22 dBu (+4 dBu Mode), +13 dBu (-10 dBV Mode) Balanced
- Maximum Insert Input Level: +22 dBu (+4 dBu Mode), +13 dBu (-10 dBV Mode) Unbalanced
- Maximum Instrument Input Level: +23 dBu (+4 dBu Mode), +14 dBu (-10 dBV mode) Unbalanced
- Input Impedance: 600? / 47 k? (XLR), > 800 k? (Instrument), 7.5 k? (Insert)
- Maximum Output Level: +26 dBu (Balanced), +20 dBu (Unbalanced)
- Output Impedance: 47? (XLR)
- Maximum Gain: 40 dB Variable Input Gain, 20 dB Switchable Boost, 15 dB Variable Output Gain, +75 dB Total
- Low Cut Filter: 10 Hz - 250 Hz (Single Pole)
- Compressor Attack: 0.25 ms 100 ms
- Compressor Release: 0.1 s 3 s
- Compressor Ratio: 1.25:1 - 20:1
- Parametric EQ: 40 Hz / 120 Hz (Low), 20 Hz - 2 kHz (Lo-Mid), 200 Hz - 20 kHz (Hi-Mid), 12 kHz (High)
- Power Requirements: 100 - 240 V 50 Hz / 60 Hz 25 W
- Dimensions: 3.5" x 19" x 9.2" (8.9 x 48.3 x 23.3 cm)
- Weight: 10.5 lbs (4.76 kg)
