Description

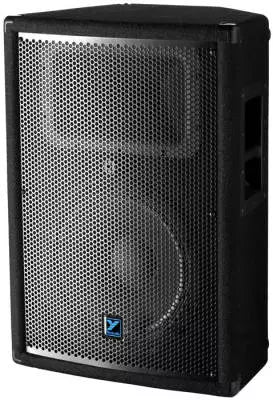

The YX12 delivers outstanding performance in a highly versatile full range loudspeaker. Engineered in North America, the YX12 benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this compact general-purpose passive loudspeaker enclosure.
The YX12 cabinet uses a single 12-inch driver and an injection molded 90 x 40 degree horn with 1-inch throat and 1.4-inch Celestion neodymium compression driver. Yorkville's tried and true dual-bulb CTL protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX12 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.
Designed with working musicians in mind, the YX12 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX12 can function equally as well as a front-of-house or monitor speaker.
Features:
• 200 Watt Full Range Loudspeaker
• 12-inch Woofer
• 1-inch Compression Driver (1.4-inch Voicecoil)
• Designed for Front-of-House or Monitor applications
• 90 x 40 Injection Molded ABS Waveguide Horn
• Innovative Dual Bulb CTL High Frequency Driver Protection
• 2 x Speakon and 2 x 1/4-inch Parallel Inputs
• Integrated All Metal Speaker Standmount Adaptor
• Solid 5/8-inch (15mm) Plywood Construction
Specifications:
• System Type: 2-Way
• Active or Passive: Passive
• Program Power (Watts): 200
• Biampable: No
• Nominal Impedance (Ohms): 8
• Sensitivity (dB @1Watt/1m): 99
• Max SPL (dB): 122
• Frequency Response (Hz +/- 3dB): 65 - 20k
• Crossover Frequency (Hz): 1800
• Driver Configuration: 12 inch / 1.4 inch
• HF Driver(s): 1.4 inch Aluminum (1 inch Throat)
• HF Horn: Injection Molded ABS
• HF Dispersion ( DEG H x DEG V): 90 x 40
• HF Protection: CTL
• LF Driver(s): 12 inch Ceramic
• LF Program Power(Watts): 200
• Inputs - 1/4 IN Jacks: 2
• Inputs - Speakon 4-pin: 2
• Corners: Metal
• Feet: Plastic Glides
• Bar Handles: 2 (Side)
• Pole Mount Adapter (1 3/8 IN -3.5cm): Yes
• Enclosure Materials: 15mm (5/8inch) Plywood
• Grille: Custom Punched Black Perforated Metal
• Covering / Finish: Black Ozite
• Dimensions (DWH xbackW COM inches): 13.75 x 18 x 25.5 x 8.5
• Dimensions (DWH xbackW COM cm): 34.9 x 45.7 x 64.8 x 21.6
• Weight (lbs/kg): 37 / 16.8
