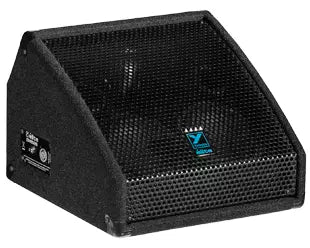

Yorkville Sound - Elite Series Compact Passive Monitor - 520 Watts

Overview:

The lite Series EM526 passive floor monitor is engineered to deliver maximum clarity and high SPL in an ultra compact low-profile cabinet design. A custom designed 90x 60 rotatable horn, dual 6-inch high power woofers, solid perforated all-metal grille and a solid 5/8-inch plywood enclosure ensure maximum long term performance and reliability.

Technology:

A modified trapezoidal shape and recessed input jack panel and handles mean these cabinets can function perfectly as a wedge monitor or front-of-house loudspeaker. Unlike some 'multi-function' loudspeakers currently in the marketplace, great care has been taken in the design process to ensure that lite cabinets will perform without compromising functionality as either a monitor or a front-of-house enclosure. Neither application was considered as an afterthought.

Several of the lite loudspeakers are loaded with 80 x 50 rotatable ABS Waveguide horn assemblies (the E10 utilizes a 100 x 25 horn). The ability to rotate the horn assembly ensures that the cabinet can provide optimum high frequency dispersion when the loudspeaker is used in either a vertical, horizontal or arrayed application.

Integrated stand mount adapters and flyware means these enclosures can be utilized in any permanent install or touring application. In addition, the modified cabinet shape means the lite series can be installed much closer to vertical surfaces and in some cases, under balconies in tight locations, and can be arrayed in a much tighter less obtrusive cluster.
Advanced Crossover Networks and Protection Schemes

Features

• 520 Watt Ultra Compact Floor Monitor
• Extremely Low Profile Design
• Delivers 124dB Continuous Max SPL
• Dual 6-inch woofer / 1-inch Compression Driver
• 90 x 60 Rotatable ABS Waveguide Horn
• Innovative CTL High Frequency Driver Protection
• 2 x Speakon and 2 x 1/4-inch Parallel Inputs
• Solid 5/8-inch (15mm) Birch Plywood Construction
• Made in Canada

Specifications:

System Type: Floor Monitor
Active or Passive: Passive
Program Power: 520 Watts
Biampable: No
Nominal Impedance: 8 ohms
Sensitivity (SPL @1Watt@1m): 97dB
Max SPL: 124dB Continuous
Frequency Response; 80Hz to 20kHz
Crossover Frequency: 1600Hz
Driver Configuration: 2 x 6-inch woofers / 1-inch Horn
HF Driver: 1-inch w/Mylar Diaphragm
HF Dispersion ( DEG H x DEG V): 90 x 60 Rotatable
HF Protection: CTL
LF Driver(s): 2 x 6-inch w/ 1.77-inch Voicecoil
Total Power: 520 Watts
Inputs: 1/4 - inch Jacks x 2 Speakon 4-pin x 2
Enclosure Materials; 15mm (5/8inch) 11-ply Russian Birch
Grille: Perforated Metal
Covering / Finish: Black Ozite
Optional Covering / Finish: Black Ultrathane Paint (EM526B)
Dimensions (DWH xbackW COM inches): 15 x 15 x 11.5
Dimensions (DWH xbackW COM cm): 38 x 38 x 29.2
Weight (lbs/kg): 24 / 10.8
