Description

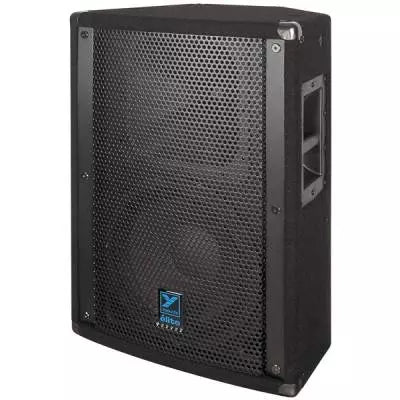

The E12 loudspeaker is one of the first in a new series of lite cabinets designed and built for maximum versatility in multiple applications. Ideal for any small PA rental house, installer or sound company, these loudspeakers may replace a number of specific application cabinets in any inventory.
A modified trapezoidal shape and recessed input jack panel and handles mean these cabinets can function perfectly as a wedge monitor or front-of-house loudspeaker. Unlike some 'multi function' loudspeakers currently in the marketplace, great care has been taken in the design process to ensure that lite cabinets will perform without compromising functionality as either a monitor or a front-of-house enclosure. Neither application was considered as an afterthought.
This 1 x 12-inch / 1-inch, 400 watt loudspeaker delivers amazing punch for its size. The E12 can be utilized vertically or horizontally. The rotatable 80 x 50 horn means high frequency dispersion can be tailored to suit the cabinet's placement. Integrated flypoints and standmount adaptor means the E12 can be easily used as a front-of-house box or stage monitor in any install, touring or club rig.
The E12 might be the most useful and versatile cabinet we have ever made. The unique cabinet shape makes for tighter arrays and the ability to fly the cabinet much closer to walls and ceilings than most conventional boxes.
Features:
• 1200 Watt Full Range Loudspeaker (600 Watts Program)
• 12-inch Woofer / 1-inch Compression Driver
• Max SPL 128dB Peak (131dB Continuous)
• Designed for Front-of-House or Monitor applications
• 80 x 50 ABS Rotatable Custom Waveguide Horn
• Advanced PTC High Frequency Driver Protection
• 2 x Speakon and 2 x 1/4-inch Parallel Inputs
• Integrated All Metal Speaker Standmount Adaptor
• Solid 5/8-inch (15mm) Birch Plywood Construction
• Made in Canada
• System TypeMulti Application Loudspeaker
• Active or PassivePassive
• Program Power (Watts)600 Watts (1200 Watts Peak / 300 Watts Continuous)
• BiampableYes
• Nominal Impedance (Ohms)8
• Sensitivity (dB @1Watt/1m)102
• Max SPL (dB)131dB Peak (128dB Continuous)
• Frequency Response (Hz +/- 3dB)55 - 26k
• Crossover Frequency (Hz)1900
• Driver Configuration12-inch / 1-inch
• HF Driver(s)1-inch throat (1.5 inch voicecoil)
• HF HornABS plastic custom Waveguide
• HF Dispersion (H x V)80 x 50 (Rotatable)
• HF ProtectionPTC
• LF Driver(s)12-inch (3-inch voicecoil)
• LF Impedance (Ohms)8
• Inputs - 1/4" Jacks2
• Inputs - Speakon 4-pin2
• Bar Handles2
• Flying Hardware3/8-inch x 3 (2 Top, 1 Back)
• Pole Mount Adapter (1 3/8"-3.5cm)Yes
• Enclosure Materials15mm (5/8inch) 11-ply Russian Birch
• GrillePerforated Metal
• Covering / FinishBlack Ozite (Carpet)
• Optional Covering / FinishesBlack Ultrathane Paint (E12B)
• Processor (optional)E1215 / EP1
• Dimensions (DWH xbackW, inches)13.75 x 18 x 25 x 8.5
• Dimensions (DWH xbackW, cm)35 x 46 x 64 x 23
• Weight (lbs/kg)46.3 / 21
