Description
Each model in the Yamaha DHR Series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10" model for fixed installation and utilities, a 12" model designed for use as a floor monitor, and a 15" version for FOH applications - all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn't it time you audition DHR quality and performance to improve your sound?

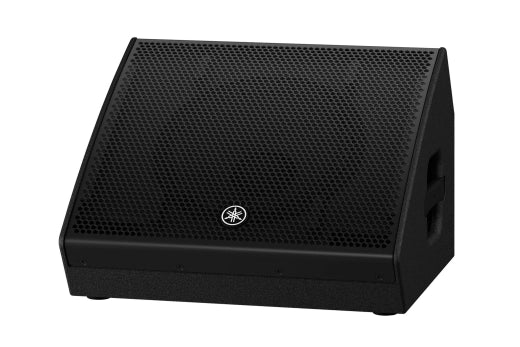

The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha's high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.
Features
• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specifications
Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 55 Hz - 20 kHz
Coverage area: H90° x V90°
Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 129 dB SPL
Components:
LF - Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
HF - Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
Amplifier class: Class-D
Power rating:
Dynamic: 1,000 W (LF: 800 W, HF: 200 W)
Continuous: 465 W (LF: 400 W, HF: 65 W)
Cooling: Fan cooling, 4 speeds
Power consumption: 74 W (1/8power), 18 W (Idle)
Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz
A/D D/A Converters: 24 bit 48 kHz Sampling
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors:
INPUT1: Combo x1
INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Side x1
Pole socket: ?35 mm x1 (Bottom)
Rigging: n/a
Floor Monitor Angle: 57°
Dimensions (W x H x D):500 x 343 x 454mm (19.7" x 13.5" x 17.9") (with rubber feet)
Weight: 16.5 kg (36.4 lbs)
