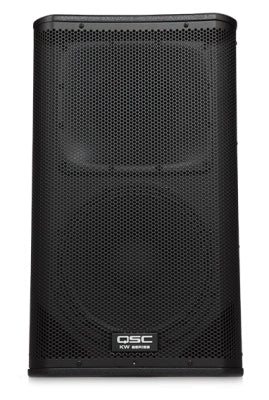

QSC - KW122 1000W 12 Active 2-way Loudspeaker/Monitor

2-way Powered Loudspeaker with a 12" LF and a 1.75" Diaphragm Compression Driver
The KW Series has been primarily designed for portable audio reinforcement. This includes a variety of uses in reinforcement for entertainers and presenters. The KW122 is designed to perform well on its own in full-range audio. it can be used singly, in stereo pairs or in distributed or delayed systems. The KW122 may also be used as a stage monitor.

The speaker offers excellent connectivity, with XLR/TRS combo inputs and line-level RCA inputs for accepting a variety of sound sources. Up to 3 audio sources can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.

The KW122 is equipped with a 35mm pole socket that allows use on a speaker stand or on a pole over a QSC-KW181 subwoofer. The pole socket on the KW122 features the QSC Tilt-Direct system for tilting the enclosures down 7.5 while on a pole. The KW122 also features eight M10 suspension points for easy installation as well as ergonomic aluminum handles for easy transportation.

Features
• 12-inch Woofer; 1.75-inch diaphragm compression driver
• 75 conical DMT coverage
• Also functions as a stage monitor/floor wedge
• 1000-watt Class D power modules in all models (2 500 W continuous)
• Onboard mixer with two combo XLR and 1/4" inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance
• DMT (Directivity Matched Transition) ensures uniform coverage across the entire sound field
• Rugged, texture-painted birch enclosures
• Four-position Mic/Line gain (full-range models)
• Tour-grade 16 gauge steel grilles
• 35 mm pole sockets with Tilt-Direct
• M10 rigging points for suspended installation

Specifications
Configuration: 12-inch 2-way multipurpose
Transducers: 12-inch cone transducer; 1.75-inch diaphragm compression driver
Frequency Response (-6 dB): 53 Hz to 18 kHz
Frequency Range (-10 dB): 50 Hz to 20 kHz
Nominal Coverage (-6 dB): 75 axisymmetric
Maximum SPL1: 131 dB peak
Amplifier
Power Output: 1000 W Class D (500 W LF + 500 W HF) continuous, 2000 W peak
Controls: Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators: Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
Connectors: Balanced female XLR-1/4" line/mic level input, Balanced female XLR-1/4" line level input, Dual Balanced male XLR full range line level out, Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
Cooling: On demand, 50 mm variable speed fan
Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail
Transducer Protection: Thermal limiting, excursion limiting
AC Power Input: Universal power supply 100240 VAC, 50 to 60 Hz
AC Power Consumption (1/8 Power):
• 100 VAC, 2.3 A
• 120 VAC, 2.01 A
• 230 VAC, 1.13 A
Enclosure
Material: 15 mm painted birch plywood
Finish: Black textured paint
Grille: Black powder coated 16 gauge steel
Dimensions: 26" x 15" x 15.4" (66.0cm 38.1cm 39.1cm)
Weight: 49 lb / 22.2 kg
