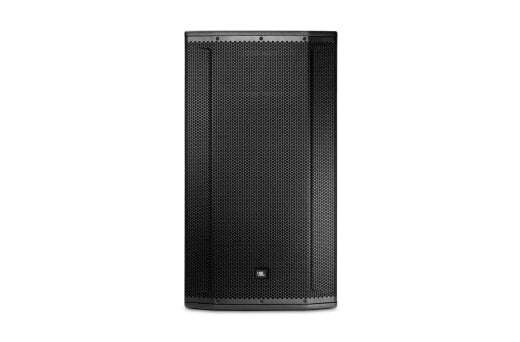

JBL - SRX835 15 3-Way Passive Speaker
JBL - SRX835 15 3-Way Passive Speaker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
15" Three-Way Bass Reflex Passive System
SRX835 is a three-way full range speaker with a 15 woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
FEATURES
Premium JBL Transducers
Rugged, versatile enclosures
Tunings available for Crown amps and dbx signal processors
Fully supported in Audio Architect
Power Handling: 3200W Peak, 1600W Program, 800W Continuous
Frequency Range: 32Hz-20kHz
Frequency Response: 43Hz-20kHz
Max SPL: 137dB
Coverage Pattern: 60x40
Amplification options: Passive/Bi-Amp
APPLICATIONS
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
SPECIFICATIONS
System Type: Passive 15", three-way, bass-reflex
Maximum SPL Output: 137dB
Frequency Range (-10dB): 32hz - 20khz
Frequency Response (- 3dB): 43hz - 17khz
Sensitivity (1W/1m): 95dB
System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance: 8 Ohm
Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes: Passive/Bi-Amp
LF Driver: 2275F
MF Driver: 2107H
HF Driver: 2432H
Coverage Pattern: 60 x 40 degrees
Crossover Frequency: 330 Hz & 2.4 kHz
Enclosure Material: 18mm plywood
Suspension/Mounting: Single 36mm pole socket, 12 x M10 Suspension points
Handles: 2
Finish: Obsidian Duraflex finish
Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (L x W x H): 18.74" x 21.4" x 38.74" (476mm x 544mm x 984mm)
Weight: 95.0 lbs (43.1kg)
