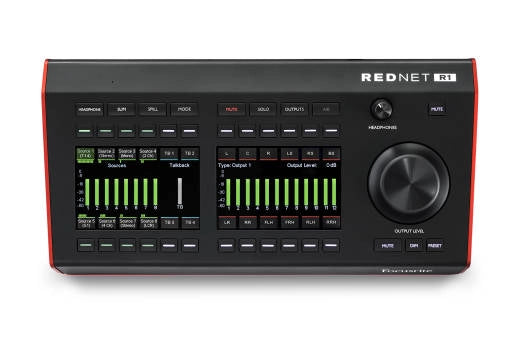

Focusrite - RedNet R1 Desktop Remote Controller for Red Interfaces

The desktop remote controller that supercharges every Red interface

RedNet R1 is a desktop remote controller that unleashes the power of Focusrite Red interfaces. It's designed for professionals who need to adapt their audio configurations quickly to suit the ever-increasing demands of the studio environment. Combine, select and switch audio from any conceivable source to a multitude of common (or user-defined) monitoring environments, and control large groups of speakers from a single set of controls. RedNet R1 is also a Dante-enabled talkback unit, with a powerful headphones output and built-in talkback mic, making it the ideal studio partner.

Features
• RedNet R1 combined with Focusrite Red interfaces are the first Dante, Pro Tools | HD and Thunderbolt interface system with a source selector and monitor controller
• Supports a maximum of eight source groups, each of up to 12 channels per source, to a maximum of 32 total channels.
• Supports up to 12 monitor output channels formatted from mono through to 7.1.4 surround
• Flexible monitor controls include level, preset level selection and lock, plus dim, mute and a variety of solo modes
• A/B switch for switching between monitoring setups
• Up to four fold-down presets allow fast switching for checking downmixes
• Talkback functionality provides four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices
• Built-in internal microphone, or users can connect their own via the rear-panel XLR
• Two LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and give visual cues for navigating menus
• High-fidelity headphone output can take its source from a multitude of analogue or digital locations
• RedNet Control software with hardware focused workflow is designed for quickly setting up simple or complex configurations
• Quarter-inch jack footswitch input socket for talkback management, LFE muting and more
• Powered via Ethernet (using the PoE standard), or using the supplied DC power supply

In the Box:
- RedNet R1
- 1 x 12V 1.2A DC - 1.8m power supply cable (2.5mm locking plug)
- 1 x Cat 6 RJ45 Ethernet Cable
- Important Information Guide
- Registration code giving access to online resources

Specifications

Internal Talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150?
• Gain Range: 0dB to 55dB
• Type: Electronically Balanced, Zin = 3k?
• Max. Input Level: +10dBu +/- 0.5dB

External Talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150?
• Gain Range: 0dB to 55dB
• Type; Electronically Balanced, Zin = 3k?
• Max. Input Level: +10dBu +/- 0.5dB
• Frequency Response: 20Hz - 20kHz +/- 2dB
• THD + N: < -98dB (0.0012%) @ -1dBFS
• EIN: < -128dBu 'A'-Weighted (typical)
• Signal-to-Noise Ratio: -111dB 'A'-Weighted (typical), min gain
• Common-Mode Rejection Ratio: 50/60Hz CMRR: < -77dB

Headphone Output
All measurements taken at +19dBm reference level, maximum gain, RL = 600?
• 0 dBFS Reference Levels: +11dBm
• Frequency Response: 20Hz to 20kHz +/-0.5dB
• THD + N: -100dB (0.001%) @ -1dBFS, Rs = 150R
• Dynamic Range: 108dB 'A'-weighted (typical), 20Hz - 20kHz
• Noise in Presence of Signal (NiPoS): > -97 dBu 'A-Weighted'
• Output Impedance: 5?
• Headphone Impedance: 32? - 600?

Crosstalk
Microphone/ Line Crosstalk
• Mic Input to Headphone Output: < -122dB; 20Hz - 20kHz (all other channels at 0dBFS)
• Headphone Output to Mic Input: < -84dB; 20Hz - 20kHz (all other channels at 0dBFS)

Headphone Crosstalk
• Left to Right: < -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
• Right to Left: < -85dB; 20Hz - 20kHz (all other channels at 0dBFS)

Digital Performance
• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
• Clock Sources: Internal or from Dante Network Master.

Rear Panel Connectivity, Pots & Switches
Inputs
• External Talkback Mic Input: 1 x XLR (F)
• Foot Switch: 1 x 1/4" stereo jack

Outputs
• Headphone Outputs: 1 x 1/4" stereo jack

Pots & Switches
• Power Switch: 1 x Switch
• Talkback Gain Pot: 1 x Pot
• Talkback Switch: 1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback).

PSU & Network Connections
• PSU (PoE and DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector.
• Network: 1 x Standard RJ45 connector.

Top Panel Indicators
• LCD Screens: 2 x Screens (Control, Status, Metering & Menus)
• Control Functions: 2 x Continuous Pot (Level & Dim). 1 x Pot (Headphone Output). 24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items). 12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock).

Power
• Power over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
• DC Power Supply: 1 x 12V 1.2A DC Power Supply.
• Power Consumption: PoE: 10.3W - DC: 9W (When using supplied DC PSU)

Heat Performance
• Operating Temperature: Operates at up to an ambient temperature of 40 degrees Celsius
