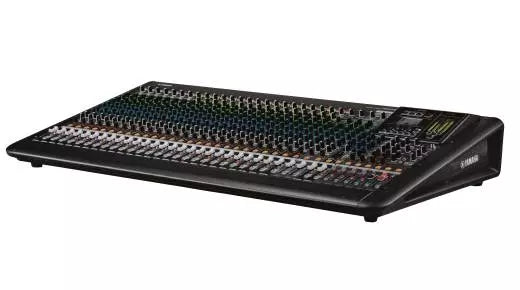

Yamaha - MGP32X - 32-Channel Premium Mixing Console
Yamaha - MGP32X - 32-Channel Premium Mixing Console is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Not just for live bands and DJ's, the MG Series mixing consoles can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.
Overview:
24 Mic Inputs with 48V Phantom Power and HPF per Channel
32 Line Inputs (24 mono and 4 stereo)
6 AUX Sends + 2 FX Sends
4 GROUP Buses + ST Bus
2 Matrix out
1 Mono out
Outline:
Mixing capability
Mixing channels - 32 Line Inputs (24 mono and 4 stereo)
GROUP - 4 GROUP Buses + ST Bus
AUX - 6 AUX Sends + 2 FX Sends
MATRIX - 1 Matrix out
On-board processors - FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
I/O
Mic inputs - MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)
Phantom power - 48V phantom power per channel
Line inputs - LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
Digital I/O - USB Device, iPod / iPhone
General specifications:
Total harmonic distortion - 0.02% (20Hz-20kHz@ +14dBu)
Frequency response - +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level
Equivalent input noise: -128 dBu Equivalent Input Noise
Residual output noise: -94 dBu Residual Output Noise
Crosstalk - -74dB @ 1kHz
Power requirements - 100-240V 50Hz/60Hz
Power consumption - 86W max
Dimensions
W - 1,027mm (40.4")
H - 169mm (6.7")
D - 565mm (22.2")
Net weight - 19kg (41.9lb)
