Samson | SKU: SM10

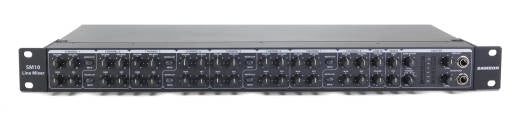

Samson - 10 Channel Rackmount Mixer - Black

Name: Samson - 10 Channel Rackmount Mixer - Black
Brand: Samson
SKU: SM10
Price: 459.99 CAD
Availability: OutOfStock

$459.99

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

Ideal for stage, studio and an infinite variety of installation applications, Samsons SM10 Line Mixer is a versatile and reliable addition to your audio setup. This internally powered, 19" rackmount metal chassis unit can be easily integrated into any existing system to more efficiently group your signals.

Features:

• Ten channels (eight 1/4" stereo line inputs, two combination XLR-1/4" inputs)
• Balance control for each channel
• Switchable +4 dBu or -10 dBV line input level
• Balanced main stereo XLR and 1/4" line outputs
• Versatile signal routing
• Low noise, discrete microphone pre-amplifiers with 48-volt phantom power
• Two auxiliary sends
• Front-panel headphone and monitor outputs with level controls
• Flexible 6-segment LED meter/headphone source control
• Center detents for all controls for use in low light situations
• Single 19" rackmount metal chassis with internal power supply

Specifications:

Inputs

Microphone: XLR balanced (2)
Line: 1/4" TRS balanced (Ch 1-8), 1/4" stereo (Ch 9-10)
Input Impedance
Mic: 1.5K Ohms
Line:
23K Ohms (+4 dBu, Ch 1-8)
40K Ohms (-10 dBV, Ch 1-8)
20K Ohms (Ch 9-10)
Maximum Gain:
Mic: 65 dB
Line: 39 dB
Line Operating Level: +4 dBu / -10 dBV selectable
Maximum Input Level (1 kHz, 3 dB):
Mic Input: -4 dBu
Line Input: +28 dBu
Equivalent Input Noise: - 123 dBu unweighted

Outputs

Main Outputs
Type: 1/4" TRS balanced (2), XLR (2)
Output Impedance: 200 Ohms Main Out
Gain Range: -? to +15 dB
Max output level: +22 dBu
MON (Pre Fade Out): 1/4" impedance balanced mono output (front panel), Stereo MON (rear panel)
EFX (Post Fade Out) 1/4" unbalanced
Output Impedance: 100 Ohms
Headphone: 1/4" TRS Stereo
Output (600 Ohm load): 100 mW

System

Frequency Response: 10 Hz 23 kHz 1 dB
Signal-to-noise ratio: > 90 dB typical
THD: < 0.01% typical
Crosstalk (1 kHz): -70 dB between input channels, -70 dB between input/output channels
Phantom Power: 48 Volts DC
Power Requirements: 120-240 VAC / 50-60 Hz
Dimensions: 19" L x 8.25" W x 1.75" H (484mm L x 210mm W x 44.5mm H)
Weight: 6 lbs / 2.8 kg
