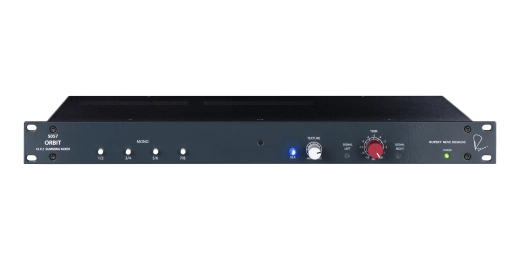

Rupert Neve Designs - 5057 Orbit 16x2 Summing Mixer
Rupert Neve Designs - 5057 Orbit 16x2 Summing Mixer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
Firmly rooted in six decades of console design experience, the 5057 Orbit gives your mixes the legendary tonality, power, and wide-open soundstage that only Rupert Neve's class-A analog summing can provide. Coupled with Rupert's famous custom audio transformers and Silk Red & Blue circuitry for variable harmonic saturation, the Orbit launches sterile in-the-box mixes to new heights of tone, depth and clarity without compromising the recallable convenience and repeatability of your DAW-based workflow.
Features
• 16 Channel +/- 21V Class-A mix buss for massive headroom
• Silk Red & Blue modes with Texture control to precisely dial in the desired amount of classic tone
• Dual-tap output transformers create rich harmonic character without clipping the next device in the chain
• Mono switches enable you to precisely center any mono mix elements like vocals, kick, snare and bass
• Exceptional linearity and accuracy, better than +/-0.1dB per channel
• Ultra-low crosstalk for wide open stereo imaging and sonic depth
• Expandable for higher channel count via buss link to other 5057 units
• Repeatable, rapid DAW-based recall while adding the rich, unrivaled sound quality of Rupert Neve Designs
• Robust and compact 1U chassis design with DB25 inputs and XLR outputs
• Combine with other Rupert Neve Designs summing products to create a world-class modular mix system
Specifications
Input Impedance: 16 k?
Frequency Response:
10 Hz to 50 kHz: +/- 0.1dB
150 kHz: -3dB
Noise (22 Hz - 22 kHz): -90 dBu typical
Maximum Input Level @ 1 kHz: +26dBu
Maximum Output Level @ 1 kHz: +26dBu
THD+N% (22 Hz - 22 kHz):
0 dBu @ 1kHz: 0.003%
+20 dBu @ 1kHz: 0.0006%
Crosstalk :
1 kHz: -103 dBu
10 kHz: -93 dBu
Product Dimensions (W x D x H): 48.3 x 22.9 x 4.4 cm / 19" x 9" x 1.75"
