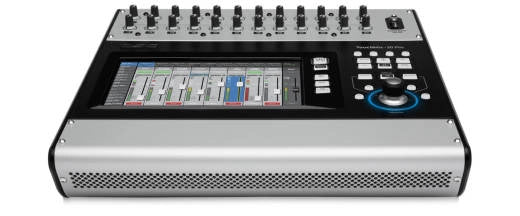

QSC - Touchmix-30 Pro - 32-Channel Professional Digital Mixer with Touchscreen

A remarkable new standard for performance in a compact digital mixer, the TouchMix-30 Pro has the features and functionality that will satisfy the most demanding professional while also providing an intuitive workflow that delivers great results, quickly and easily, to users at every level of experience. Perfect for production professionals, musicians and bands as well as live performance venues, its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications.

TouchMix "Pro" Features:

Far more than simply a higher channel count version of the TouchMix-8 and TouchMix-16, The TouchMix-30 Pro offers a host of additional, new Pro features including:
• Large (10-inch) multi-touch touchscreen offers more on-screen information while also providing greater hands-on control
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
• Copy and Paste function easily duplicates mixes, channels, EQ, dynamics and more.
• Touch-and-route Patch Matrix for easy "multing" and rearrangement of inputs
• Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
• 32-channel direct-to-hard drive record/playback capture and recall performances without the need for a computer
• 32-Channel DAW interface with Mac computers allows for bidirectional I/O with popular workstation software
• MP3 playback direct from USB

More of Everything

Additionally, the TouchMix-30 Pro offers even more of what you would expect and demand from a TouchMix Series mixer:
• 24 class-A microphone preamps deliver pristine, studio-quality audio
• Over 120 live instrument, microphone and other audio source presets created in live environments provide mix-ready channel settings
• All outputs feature 1/3 octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters
• 14 mono mixes may be paired for stereo while two pairs of Auxes can drive wired in-ear monitors (IEM) directly
• Six stereo effects processors plus pitch-correct offer studio-grade signal enhancements, without sacrificing Auxes or additional channels

Specs:

Inputs
32 Total
24 Mic/Line (4 with XLR/TRS combo);
6 Stereo Balanced (TRS); 1 1/8" (3.5 mm) stereo;
2 Stereo USB MP3 playback
Talkback mic w/ 48V

Outputs
Main L/R (XLR)
14 Mono Aux mixes (XLR) can be paired stereo
3 Stereo Aux, (TRS)
2 Monitor L/R (XLR)

Display
10" (254 mm), 1024 x 600 pixel, color TFT, capacitive multi-touch sensing

USB Direct to Hard Disk Recording/Playback
32x32 channels

DAW USB Computer Recording/Playback
32 x 32 (Core Audio, MAC OS only)

WiFi Control
External Control: TouchMix Control App for iPad and Android tablets controls all mixer functions via Wi-Fi.
Wi-Fi: USB Wi-Fi dongle or Wi-Fi router

RTA - yes

Effects
6 DSP Engines (Reverb, Delay, Chorus, Pitch Shift)

Wizards
Anti-Feedback, Room Tuning, Gain, Effects

Power Requirements
100-240 VAC, 50-60 Hz

Sampling Frequency
Selectable 44.1 kHz or 48 kHz

THD
< 0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output

Frequency Response
20 Hz-20 kHz +/-0.5 dB, any input to any output

Dimensions
7.5 in x 16.9 in x 18.1 inch
19 cm x 42.9 cm x 46 cm

Weight
17.5 lb (7.9 kg)
