Description

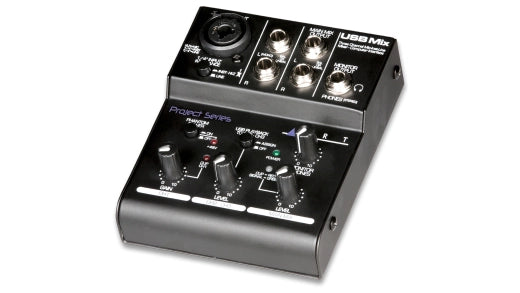

The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB Audio. The USB Mix provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording.
Features:
• USB powered, no external power supply needed when used with a computer
• Balanced XLR or unbalanced -inch Instrument inputs with switchable impedance
• Switchable low noise +48V phantom power
• Balanced -inch TRS inputs for stereo or mono line-level sources
• -inch TRS output jacks work with balanced or unbalanced lines
• Stereo -inch TRS headphone jack with independent level control for output monitoring
• Independent controls for both sets of inputs, main output, and headphone monitor
• Green/Red LED signal/clip indicator
• Switchable assignment of USB playback to channels 2 and 3
• USB 2.0 compliant
• USB cable, AC adapter, and Audacity recording software included
Specifications:
• Input Connections: XLR balanced / 1/4" unbalanced "Combo" jack (ch1 input)1/4" balanced or unbalanced (Ch2-Ch3 inputs)
• Output Cannections: 1/4" TRS balanced (Main Mix outputs)1/4" TRS stereo (Monitor output)
• Input Impedance: 240k Ohms (Inst-HiZ), 20k Ohms (Line) (Ch 1, Ch2-Ch3 1/4" inputs)> 4k Ohms (Ch1 XLR input)
• Output Impedance: 90 dB typical (Ref 0 dBu)
• Equivalent Input Noise: -120 dBu typical (XLR balanced, max gain), -100 dBu typical (1/4")
• Maximum Input Level: +4dBu (XLR input), +14dBu (1/4" input)
• Maximum Output Level: +14dBu (Main Mix Outputs), +13dBu (Monitor output)
• Maximum Gain (In to Main Out): +53dB (XLR), +32dB (1/4") Ch1 input+10dB (1/4") (Ch2-Ch3 inputs)
• Maximum Gain (In to USB): +44dB (XLR), +23dB (1/4") (Ch1 input)+1dB (1/4") (Ch2-Ch3 inputs)
• Maximum Gain (USB to Out): +14dB (Main Mix outputs), +13dB (Monitor output)
• Phantom Power: Switch selectable, +48V DC, filtered, current limited
• A/D-D/A: 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer0.4 ms A/D latency @ 44.1 kHz
• Computer Interface: USB 2.0 compliant, Windows, Linux or Mac OS computers with class compliant USB support
• Chassis Type: All steel black finish
• Power Requirements: 5.0V DC @
