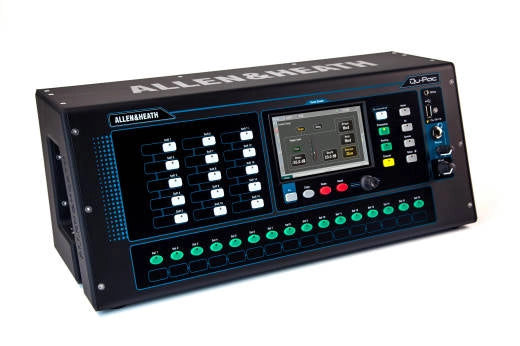

Allen & Heath - Qu-Pac Ultra-Compact Digital Mixer

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into an uber-compact desk or rack mount format. Qu-Pac frees you to mix from your iPad, but the full functions of the mixer can also be accessed from the front panel and touchscreen.

With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.

User permissions and the customizable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.

QU-PAD
Add the Qu-Pad iPad app to your Qu setup and you're free to adjust the monitors on stage, roam around the venue while tweaking the PA, and then mix the show from the heart of the audience. Qu-Pad connects to the mixer over Wi-Fi and gives instant access to all live mixing parameters and settings.

TOUCH CONTROL
Qu-Pac's 5 inch, 800 x 480 colour Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

ANALOGIQ PREAMPS
The AnalogiQ total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQ design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

ARMED TO THE HILT
Qu mixers are equipped with 5 cores of high efficiency ARM core processing, with dedicated ARM cores running the touchscreen display and surface, USB streaming, Qu-Drive multi-channel USB recording / playback and Ethernet. Between them the ARM cores provide state-of-the-art processing, working in parallel to deliver extensive control, instant-on operation, and lightning-fast response.

Features:

• 16 acclaimed AnaLOGIQTM recallable preamps
• 16 on-board Mic / Line Inputs (XLR / TRS)
• Expandable up to 38 inputs via dSNAKE
• 3 Stereo Inputs (TRS)
• 32 Mono + 3 Stereo Input Channels
• 12 on-board Mix Outputs (XLR)
• 4 Stereo Groups
• 2 Stereo Matrix Outs
• AES Digital Out
• 4 DCA Groups
• 4 Mute Groups
• Qu-Pad iPad App for all live mixing controls
• Qu-You iPhone App for personal monitoring
• Qu-Drive direct Multitrack Recording / Playback on USB drives
• 15 Soft Keys
• 16 Custom Select keys
• Qu-Control custom screen to suit application
• 4 FX Engines
• 4 FX Sends / Returns
• 3232 USB Audio Interface
• 5" Touchscreen
• iLive FX Library
• Compatible with ME Personal Mixing System
• Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication

Dimensions:

Height: 180mm (7")
Length: 440mm (17.3")
Width: 180mm (7")
Weight: 6.6 kg (14.5 lbs)
