Allen & Heath | SKU: QU-5D

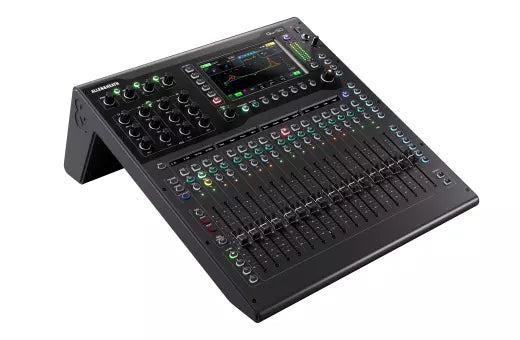

Allen & Heath - Qu-5D 32-Channel 96kHz Digital Audio Mixer with Dante

Name: Allen & Heath - Qu-5D 32-Channel 96kHz Digital Audio Mixer with Dante
Brand: Allen & Heath
SKU: QU-5D
Price: 3799.00 CAD
Availability: OutOfStock

$3,799.00

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

Qu-5 takes the ever-popular Qu-16 form factor and adds Allen & Heath's powerful XCVI processing, new FX engines and Everything I/O connectivity. There's also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys.

In addition, the Qu-5D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment.

Both the Qu-5 and Qu-5D are rack-mountable, 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.

Specifications

Processing & FX
• 96kHz XCVI Core
• 6 Multi-FX Engines with dedicated Stereo Returns
• DEEP Processing Ready

Mix Architecture
• 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
• 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
• 4 Mono/Linkable Matrix
• Stereo Main LR Output

I/O
• 16 XLR/Jack 'Combi' Mic/Line Input Sockets
• 2 Stereo Line Input Sockets (each 2x TRS)
• 12 XLR Output Sockets
• 1 XLR Talkback Socket
• 2 TRS Output Sockets
• 1 AES3 Stereo Digital Output Socket
• 128128 Intelligent SLink Port for Everything I/O expansion and system connections
• 1616 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
• Stereo Headphone Output

Control
• 7" Capacitive Touchscreen
• 17 100mm Motorised Faders
• 4 Channel Strip Layers
• Remote control via free apps - Windows/MacOS/iOS/Android
• 8 SoftKeys
• Configurable single/dual Footswitch Connection

Recording & Playback
• USB-A For stereo audio record/playback and data transfer
• USB-C Audio interface for multichannel record/playback (32x32)
• SD Card Slot for multichannel audio recording or playback (16x16@96kHz, 32x32@48kHz)

Misc
• 19" Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
• 12V Lamp Socket
• Configurable Chromatic Channel Meter LED's
• Dimensions (D x W x H): 476 x 440.4 x 213.1mm (18.7 x 17.3 x 8.4")
• Weight: 10 kg (22 lbs)
