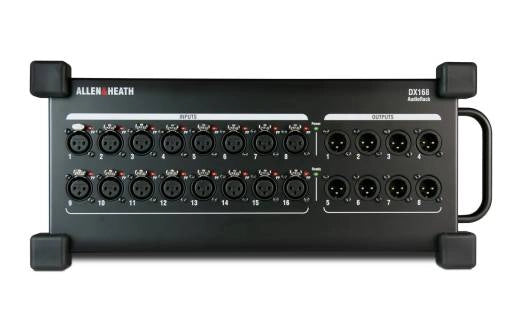

Allen & Heath - DX168 16 Input / 8 Output Portable Expander Rack for dLive
Allen & Heath - DX168 16 Input / 8 Output Portable Expander Rack for dLive is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The DX168 is a rugged, portable expander for adding remote I/O to a dLive S Class or dLive C Class system.
Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. Up to 6 DX168 units can be connected to a dLive system 4 via the MixRack and 2 via the Surface allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface.
The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O.
The Expanders rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in industry standard 19-inch racks.
Features:
16 Mic Preamps on XLR with Phantom Power status LEDs
8 XLR Line Outs
Compatible with dLive S Class and dLive C Class hardware
Up to 6 DX168 units can be added to a dLive system for 96 inputs / 48 outputs
Cascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O (requires firmware 1.60 or higher)
Redundant DX connection to dLive S Class hardware
Optional 19-inch rack mount kit available
Plug and Play no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Rubber bumpers
Carry handle
System Specifications:
Inputs
XLR Mic/Line Inputs: Balanced, +48V Phantom Power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: > 4k? (Pad out), > 10k? (Pad in)
Mic/Line Channel noise 22-22kHz, Direct Out @ unbalanced out
Mic EIN: -127dB with 150? source
Unity gain (Pad in): -90dBu
Low gain (5dB, Pad out): -96dBu
Mid gain (30dB, Pad out): -90dBu
Mic/Line Channel THD+N: 22-22kHz, Direct Out @ unbalanced out
Unity gain (Pad in): 0.003% -88dBu @ 1kHz, 0dBu output
Low gain (5dB, Pad out): 0.002% -93dBu @ 1kHz, 0dBu output
Mid gain (30dB, Pad out): 0.003% -88dBu @ 1kHz, 0dBu output
Outputs
XLR Outputs: Balanced, Relay protected
Output Impedance: < 75?
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -92dBu (muted, 20-20kHz)
Operating Temperature: 0 deg C to 35 deg C (32 deg F to 95 deg F)
Mains Power: 100-240V, 50/60 Hz, 20W max
