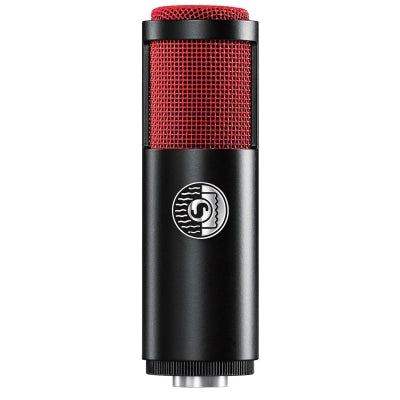

Shure - KSM313/NE Dual-Voice Ribbon Microphone

The KSM313/NE is a premium bi-directional ribbon microphone for world-class audio and performance. The dual-voice design features discrete front-and-rear side sonic signatures for use with amplified instruments or intimate vocal applications. Assembled from state-of-the art transducers, transformers, and metals as the pinnacle of Shure quality for prestigious vocal and acoustic performances.

The high-tensile strength, toughness, and shape memory of Roswellite® ribbon material replaces traditional foil ribbons for superior resilience at extreme SPLs.

With unique technology and application features, alongside superior materials and construction, Shure KSM Ribbon Microphones are the necessary choice for the world's most accomplished studio and live performances.

Features
• Bi-directional polar pattern delivers premier audio with superior off-axis rejection
• True Dual-Voice tuned specifically for user's for choice of response: warm and full for amplifiers on the front, or swivel for bright and flattering vocals on the rear side
• Revolutionary Roswellite® proprietary ribbon material replaces traditional foil ribbons with high tensile strength, toughness, and shape memory that provides superior resilience at extreme SPLs
• Custom-sourced components for superior presence, minimized signal loss, and maximized output
• 146 dB SPL across 30 - 15,000 Hz frequency response ideal for capturing fast transients in vocals, acoustic instruments, and concert halls
• Legendary Shure quality and superior construction from hand-assembly of machined steel, silver, gold, and aluminum materials

Performance Characteristics
• Ribbon microphones perform optimally with the least amount of loading on the ribbon element as practical. The higher the impedance input on the microphone, the better the low-end and mid-range frequencies are represented in the output signal. Shure recommends using preamps with impedance settings of 1000 Ohms or more, although different load impedances may be used for a desired sound quality.
• This is a low-noise microphone. The combination of its efficient transducer, robust shielding, and custom transformer produces a low noise floor and output level equal to moving coil microphones.
• Shure ribbon microphones have an exceptionally smooth, natural response and perform best with preamps that provide simple, transparent gain. However, Shure encourages experimentation to find the desired combination of colour and transparency.

Applications
The unique Dual-Voice design of the KSM313 produces discrete front and rear sonic signatures. Position the sides, the null points of a bidirectional microphone, towards any unwanted sound sources. Some typical applications are listed below.

Address the front for a warmer, darker tone
• Electric guitar amplifiers
• Brass and woodwind instruments
• Upright bass
• Kick Drum

Address the rear for a brighter tone with increased presence
• Vocals
• Acoustic string instruments
• Drum overheads and percussion

When addressing the back side of a bidirectional mic, please remember to invert the signal polarity. This can be done in software or using Shure's A15PRS accessory - an in-line, balanced, polarity-reversing switch capable of this operation.

Specifications
Type: Dual-Voice Roswellite® Ribbon
Polar Pattern: Bidirectional
Frequency Response: 30 to 15,000 Hz
Output Impedance: 330?
Sensitivity: -54.5 dBV/Pa (1.88 mV)
Maximum SPL: 146 dB SPL
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Housing: Machined Steel
Weight: 400 g (14 oz.)
