Description

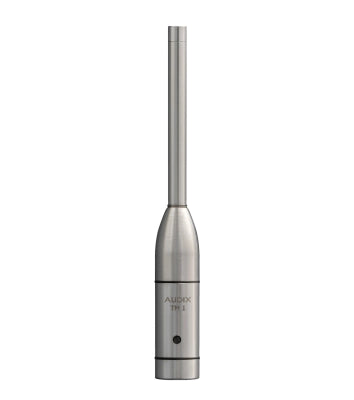

The TM1 Plus is a 6 mm pre-polarised condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.
Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analysers, and other sound control devices. With a flat frequency range of 20 Hz - 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.
The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA. The TM1 Plus includes calibration data file and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adaptor.
Specifications
Transducer Type: Pre-polarised Condenser
Frequency Response: 20 Hz - 20 kHz +/-2 dB
Polar Pattern: Omni
Output Impedance: 200 ohms
Sensitivity: 6 mV / Pa @ 1k
Equivalent Noise Level: 28 dB (A weighted)
Signal to Noise Ratio: 66 dB
Maximum SPL: 130 dB with distortion 1% 140 dB Max
Power Requirements: 24 - 48 V Phantom
Power Consumption: 8.9 mA @ 48 Volts
Connector: Switchcraft® or Audix mail XLR
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials/Finish: 4 piece precision machined brass / Nickel Finish
Weight: 132 g (4.7 oz)
Length: 150 mm (5.9")
Includes
- 1x TM1 Test & Measurement Mic
- 1x WSTM1BP Windscreen
- 1x SMT19 Shock Mount Clip
- 1x TM1CA4231 Calibration Adaptor for Use With 1-inch Calibrators
- 1x Sensitivity & Calibration Data CD
