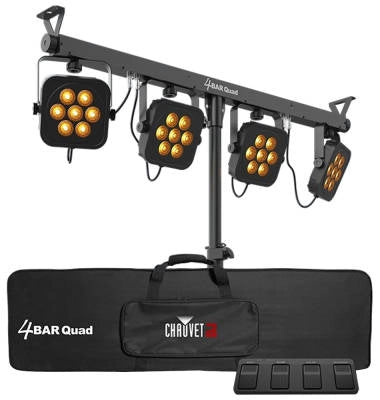

Chauvet DJ - 4BAR Quad Lighting System with Tripod, Bag and Footswitch
Chauvet DJ - 4BAR Quad Lighting System with Tripod, Bag and Footswitch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
4BAR Quad is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad safely attaches to truss with built-in bolts, easily increasing mounting options.
Features
• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to truss using built-in bolts
What's Included
• 4Bar Quad
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
Specifications
DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
PWM Frequency: 1310 Hz
Beam Angle: 14?
Field Angle: 23?
Operating Frequency: (D-Fi): 2.412 to 2.484 GHz
(foot switch): 433 MHz
Fits Tripod Size: 1.5 in (36.80 mm)
Illuminance: 2,353 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz
Weight: 12.2 lb (5.5 kg)
(Controller): 1.2 lb (0.6 kg)
Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
(Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
Approvals: CE, FCC
Footswitch battery: 9 V
Stand Height: 7 ft 4 in (2.2 m)
Bracket Mounting Hole: M10 (1.5 mm pitch)
