American DJ | SKU: JOLT-PANEL-FXIP

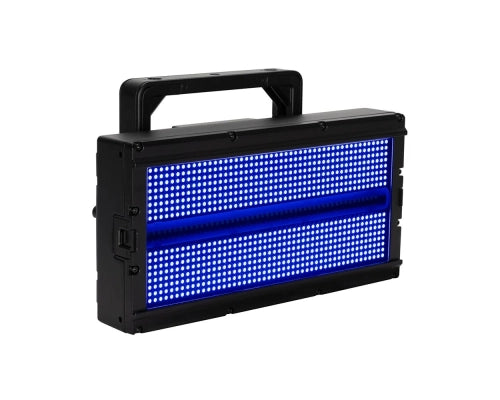

American DJ - Jolt Panel FXIP Lighting Panel

Name: American DJ - Jolt Panel FXIP Lighting Panel
Brand: American DJ
SKU: JOLT-PANEL-FXIP
Price: 1929.98 CAD
Availability: OutOfStock

$1,929.98

This product is not currently available online. Contact us to order this product or for more information.

50 years of expertise

Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.

Shipping

Shipping is free for all purchases of $249 or more.

Delivery policy

We offer free shipping on most products of $ 249.00 and over.

Free shipping is not valid for remote regions such as Nunavut, Yukon, Northwest Territories.

Due to size, weight or destination, some items will not qualify for free shipping.Métronomie ships all items uninsured. The risk of shipping loss or damage is the sole responsibility of the customer. The products are available within the limits of available stocks.

Métronomie provides dispatch or delivery, it will endeavor to ship or deliver any ordered product as soon as possible and within the time specified, if any. However, you understand that Métronomie will not be held responsible for delays in shipment or delivery.

Questions/Contact

Please call our toll-free web store customer support line at 1-418-724-8088, or email metronomie@gmail.com with any questions, suggestions or concerns.

BEST PRICE GUARANTEE!

If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.

Payment and security

Payment methods

Your payment information is handled securely. We do not store or have access to your credit card details.

Description

The IP65-Rated Jolt Panel FXIP is an extremely bright and versatile fixture ideal for concert tours, one-off event production and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 800 x 0.5-Watt RGB SMD LEDs. The Jolt Panel FXIP provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated 'eye candy' chase effects from the same compact fixture which can be used inside or outdoors in any weather.

Features
• 40 x RGB LED Zones
• 6 x Cool White LED Zones
• 25 Built-in RGB LED Program Macros
• 9 Built-in Cool White LED Program Macros
• IP65-Rated for temporary outdoor and indoor use
• Aria X2 Wireless DMX Built-in
• Channel for Light Shaping Filters (to Blur Pixel Dots)
• End Cap Locking Mechanism and Connecting Plat (for seamless fixture linking)
• Built-in Holes to Connect an Omega Bracket (sold separately)

Specifications
Light Source
800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
73° Beam Angle
111° Field Angle
Color LEDs Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White LED: 6900-7400K Color Temperature
CRI: 69.4
50,000 Hour Average LED Life

Control
Control Protocols: DMX, Aria X2 and RDM
10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
0-100% Smooth Dimming
Strobe, Shutter & Pulse Control
Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.
Refresh Rate: 900Hz - 25kHz.
With Wired Digital Communication Network
Display: OLED Display with 4-Button Touch Menu

Connections
Data: IP65-rated Outdoor Locking 5-pin DMX In/Out
Power: IP65-rated Outdoor Locking Power In/Out

Electrical
100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 214W @120V; 208W @230V
Max Power Link: 6pcs @120V; 12pcs @230V
Fuse Protected: T5A/250V Glass Fuse (5*20MM)
