Description

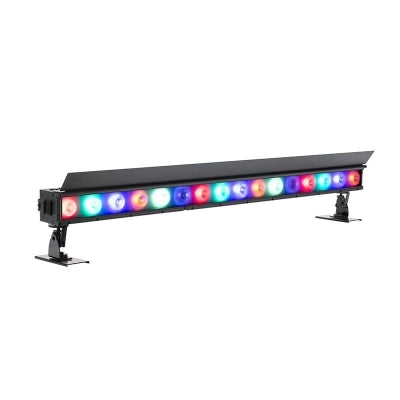

The ADJ Lighting ElectraPix Bar 16 is a cutting-edge IP65-rated, battery powered, wireless DMX 1-meter linear fixture. It features eight 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX and has a battery life up to 10 hours.

Features
• 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Colour Calibrated LEDs
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Specifications
Source
(16) 20W Hex Color RGBAL+UV Foreground LEDs
(66) 0.2W RGB Background LEDs
50,000 Hour Average Life

Optical
2,300K ~ 9,900K White Color Temperature Range
17° Beam Angle
45mm Lens Diameter x16

Physical
IP65 Housing
OLED Digital display
L Track system for locking accessories / rigging
Glare Shield
Diffusion Filter slot
Angle adjustable feet
Horizontal slide lock to attach additional LuminPix Bar 16 or LuminPix Bar 8

Control
DMX512
Aria X2 Wireless DMX
Bluetooth
RDM and RDM Net Compatible
IR (Includes UCIR24 wireless remote)
(9) DMX Channel Modes (5, 6, 9,13, 22, 24, 96, 99 & 114 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode

Connections
5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
Outdoor Locking Power Sockets
Battery Charging Socket

Power
AC100-240V/50Hz-60Hz Input
90W Power Consumption
Link 10 pieces @120VAC or 18 pieces @ 230VAC

Battery
Rechargeable Lithium ion
Battery Capacity: 14,000mAh
Battery Voltage: 22.2V
Charge Time: 7 Hours (To Full)
5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
Battery Cycles: 500

Thermal
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
