Description

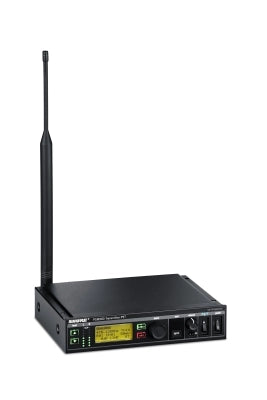

The P9T is a half-rack wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM900 Wireless Personal Monitor System. It offers state-of-art technology including CueMode (patent pending), RF Sync, and RF mute switch for easy setup and operation. Connections include balanced 1/4" and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:
• RF Mute Switch allows system setup without causing RF interference
• Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
• Front panel audio input gain adjustment and LED level meter with clipping indicator
• Front or rear mountable antennas
• Compatible with PA421A and PA821A antenna combiners
• Loop out connectors for multiple mix setups and easy installation
• Switchable +4 dBu and -10 dBV input level
• Balanced, 1/4" and XLR connectors
• Bit-mapped, backlit LCD
• Includes rack-mounting hardware
• 1/8" headphone out on the front panel for easy monitoring
Specifications:
RF Output Power: Selectable 10, 50, 100 mW (regionally dependent)
RF Output Impedance: 50 ? (typical)
Net Weight: 850 g
Dimensions: 197 mm x 166 mm x 42 mm (7.75in x 6.55in x 1.65in)
Power Requirement: 415 mA typical @ 120VAC (with RF on 100 mW power mode, no audio)
AUDIO INPUT
Connector Type: Combination XLR and 6.35 mm (1/4") TRS
Polarity: XLR: Non-inverting (pin 2 positive with respect to pin 3);
6.35 mm (1/4") TRS: Tip positive with respect to ring
Configuration: Electronically balanced
Impedance: 70.2 k? (actual)
Nominal Input Level: Switchable +4 dBu, 10 dBV
Maximum Input Level +4 dBu: +23.3 dBu; 10 dBV: +12.5 dBu
Pin Assignments: XLR: 1=ground, 2=hot, 3=cold;
6.35 mm (1/4") TRS: Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection up to 60 V DC
AUDIO OUTPUT
Connector Type: 6.35 mm (1/4") TRS
Configuration: Electronically balanced
Impedance: Connected directly to inputs
