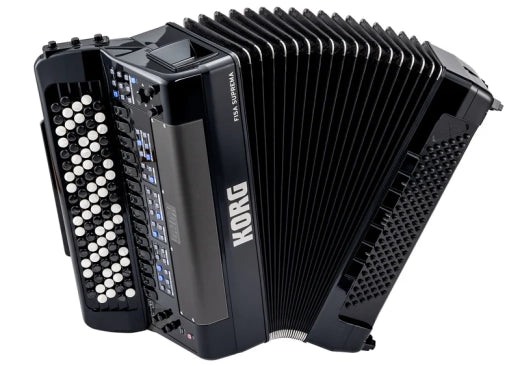

Korg - Fisa Suprema with Buttons Digital Accordion

A revolutionary digital accordion, the FISA SUPREMA masterfully combines traditional craftsmanship with cutting-edgetechnology.

This groundbreaking instrument delivers the authentic feel and nuanced playability of a 120-bass accordion, while offering the unparalleled bellow-response, powerand versatility that only the latest digital advancements can provide.

Expertly crafted in Italy, the FISA SUPREMA offers an unparalleled authentic accordion experience. With 45 accordion types from around the world, customizable reed configurations, and various sound settings, this instrument is tailored to meet the specific needs of accordionists. Available in both keyboard and button versions, it offers flexibility and personalization that rival traditional accordions.

Specifications
KEYBOARD
Right Hand - 90 buttons with velocity sensitivity and aftertouch via Master Bar
Left Hand -120 bass buttons with velocity sensitivity, standard and free bass mode

TONE GENERATOR: Advanced T2L Engine

MAXIMUM POLYPHONY: 320 voices

ACCORDION Section
Accordion Types: 45
Registers: 14 Treble, 7 Bass/Chord, 7 Free Bass
Reed Footage: 9 Treble (16',16'-,8',8'-,8'+,4',5'1/3, 2'2/3), 5 Bass (16', 8', 8-4', 4', 2') with selectable lowest note, 5 Chord (16', 8', 8-4', 4', 2') with selectable lowest note, 3 Free Bass (8', 4', 2')

Virtual Tone Wheel Technology (Upper, Lower, Pedal):
Organ Types: Tone Wheel 1-2, Transistor (Farf, Vox), Pipe types with over 148 patches assignable to the registers
Registers: 14 Treble, 7 Bass/Chord, 7 Free Bass

ORCHESTRA Section
Sounds: More than 170 patches assignable to 14 Treble Registers, 159 patches assignable to 7 Bass/Chord registers / 7 Free Bass registers, 23 Special HSC Sounds (Hyperreal Sound Cluster) for chord and bass section
Registers: 14 Treble, 7 Bass/Chord, 7 Free Bass

ORCHESTRA 2 / SOLOIST / SYNTH Section
Sounds: Over 170 Orchestra 2 / 18 Soloist / 42 Synth patches assignable to the Treble registers
Registers: 14 Trebles

DRUM Section
Sounds: 80 Drum set assignable to the 7 Bass/Chord registers, 7 Free Bass registers, Over 100 Drum instruments
Registers: 7 Bass/Chord, 7 Free Bass

ADDITIONAL SOUNDS: Uploadable from USB memory and savable on internal memory ( ~ 580 MB of free space available )

USER SCENE MEMORIES: 100 Banks of 6 Scenes each, providing 92400 stored registers in total

EFFECTS
Master Reverb/Delay/EQ, 2 Multi Effects for each individual Part, Rotary, Vibrato/Chorus, Overdrive for Organ sounds

BELLOWS
"Advanced Proportional Bellows Behavior" technology to control the resistance of the bellows by selected registers, number of keys pressed and individual note pitch.
Independent resistance between push and pull of the bellows to balance the movement.
"Adaptive Expression Interpolation" for smoother transition and fast bellow shaking.
"Seamless Release" on Orchestral sounds at Bellows changes & inversion.

ACCORDION SIMULATION ALGORITHMS
Musette detuning for each individual note: Off, 15 curve types Bellows Expression, Bellows Detune
Continuous sound-attack shaping from Slow to Fast
Bass & Chord Growl noise, Treble Growl noise (16'), Aging, Bellows direction
Individual Reed Starts, Cassotto, Treble Valve-Off noise, Treble Key-On noise
Bass & Chord Key-Off mechanical noise, Bass & Chord Key-On noise, Valve Air blow (Treble, Bass & Chord, Free bass), Bellows resonance.

EASY / ADVANCED MODE
Accordion Type - Organ Type (Easy Mode)
Scenes (Advanced Mode)

MASTER TUNE: Adjustable from 415.4 to 466.1 Hz (step of 0.1 )

TEMPERAMENT: 9 types

CONTROLLERS
Main Volume, Main Balance, DATA/ENTER, Reverb Level, Delay Level, FX-C1, FX-C2, 3 Chin Switches, Master Bar control, Master Bar switch, Touch Sensor, "G" Sensor

OTHER FUNCTIONS
Bass & Chord Hold
Treble Long Release
Octave -1,0, +1
6 user assignable switches on last row of bass buttons
Sound Edit: Orchestra, Orchestra2, Soloist, Synth

BLUETOOTH: A2DP for RX audio streaming and MIDI BLE 4.2

DISPLAY: Color LCD 2.4", 320 x 240 dots

SPEAKER ON-BOARD: YES

RATED POWER OUTPUT: Biamp and DSP: 112 W max @THD+N 0.1%

POWER SUPPLY
AC/DC Adaptor: 24V DC 5A DYS6150-2400500W
Battery Pack: Rechargeable Lithium-Ion battery: (4S2P 14,4 V, 6600 mAh) for over 9 hours autonomy

ON BOARD CONNECTORS
OUTPUT jacks L/Mono (Treble), R/Mono (Bass): 1/4 phone type, PHONES jack: 1/4 phone type, MIDI (IN/OUT) sockets, USB MEMORY port: type A, USB COMPUTER port: type B (for MIDI and DIGITAL AUDIO IN/OUT 16 bit, 48 KHz), DC IN connector

POWER CONSUMPTION
Stand By: 0.4W
Maximum: 74W
"ErP" LEVEL VI for Echo efficiency on stand-by consumption
