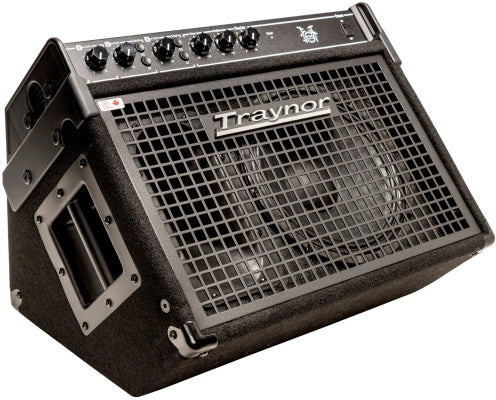

Traynor - 10/200 Watt Combo Drum Amp

The 200-watt ultra-compact DW10 has been designed from the ground up to handle wide dynamic range and transient nature of modern electronic drum kits easily and effectively. Ideal for stage, private practice or rehearsal hall, the Traynor DW10 drum amplifier uses a compact wedge monitor format and a high power low distortion 10-inch woofer and 1-inch compression driver on a PA style horn to deliver maximum tone and clarity.

Three discrete stereo input channels with stereo XLR balanced DI output make the DW10 a perfect small mixer solution for live applications. Channels 2 and 3 can bypass the DI output so monitor feeds or metronome sources can be mixed into the DW10, but not sent to the Front-of-House PA - making the DW10 combo the ideal monitoring solution for the working drummer.

Solid plywood cabinet construction and an all metal grille ensure unmatched long term ruggedness and reliability.

Features
• Compact 200-watt Wedge Design
• Tuned for Maximum Performance with Electronic Drum Kits
• High Performance 10-inch Woofer
• 1-Inch PA Quality High Frequency Compression Driver
• Three Discrete Stereo Input Channels
• Selectable DI Send on Channel Three Allowing for Isolated Click Track or Local Monitoring
• Stereo XLR Balanced Output

Specifications
Power @ min. impedance (Watts): 200
Speaker Configuration - LF (Size/Power): 10-inch
Speaker Configuration - HF (Size/Power): 1-inch Compression Driver
Inputs: 3
Channel 1 - Inputs: 2 x 1/4-inch Balanced/Unbalanced Stereo
Channel 1 - Controls: Gain
Channel 2 - Inputs: 2 x 1/4-inch Balanced/Unbalanced Stereo
Channel 2 - Controls: Gain, EQ Send, DI Send
Channel 3 - Inputs: 2 x 1/4-inch Balanced/Unbalanced Stereo
Channel 3 - Controls: Gain, EQ Send, DI Send
Master Volume Control: Yes
Line Out (type/configuration): XLR Balanced
LED Indicators: Power, Ch. 1 Clip, Ch. 2 Clip, Master Clip
Dimensions (DWH,inches): 13.75 x 18.75 x 14
Dimensions (DWH,cm): 35 x 48 x 36
Weight: 28 lbs (12.6 kg)
