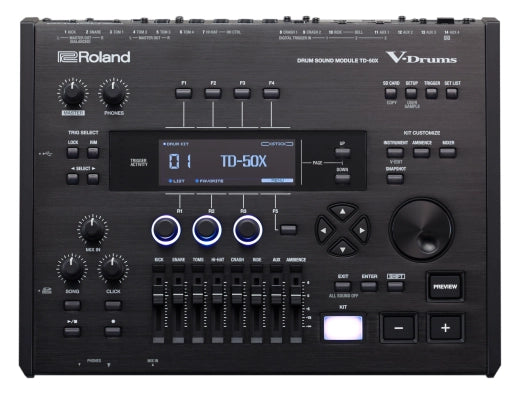

Roland - TD-50X Sound Module

The TD-50X is Roland's most advanced V-Drums module ever, featuring over 900 premium sounds and full support for Roland's groundbreaking digital snare, ride, and hi-hat pads. Prismatic Sound Modeling brings you the most acoustic-like experience available in electronic drumming, offering incredible depth, dimension, and detail with authentic sound and natural response. Three inputs are provided for digital pads, along with a wide array of analog trigger inputs for the entire range of traditional pads. Deep editing tools make it easy to craft your personal sound, while extensive pro connectivity lets you tackle everything from multitrack computer recording to full-scale arena shows.

Prismatic Sound Modeling: Feel the Difference
The Prismatic Sound Modeling in the TD-50X makes electronic drums come to life like no other system can, infusing multi-layer samples recorded in world-class studios with sophisticated behavior modeling techniques refined over more than two decades. Inspired by a prism-which refracts a single ray of light into every color in the spectrum- Roland's revolutionary approach produces an unlimited array of sonic colors with every stick hit. The initial attack is followed by a complex mix of rich overtones, just like playing acoustic drums and cymbals. You can feel the sound changing in reaction to your expression, creating that magical, interactive bond that fully immerses you in the emotion of the moment. From subtle ghost notes and detailed articulations to the loudest and most intense playing, your drumming has no boundaries with the TD-50X.

Features
• Over 900 premium sounds, including many new kick, snare, hi-hat, tom, and cymbal selections
• Three digital trigger inputs for connecting advanced Roland digital pads
• Up to 14 TRS analog trigger inputs for standard Roland V-Pads, V-Cymbals, and trigger pads
• Ready-to-play presets based on legendary and contemporary drum kit sounds, purposefully tuned for full, punchy, and dynamic sound
• Hands-on interface for quick selection and deep customization of drum sounds
• Massive selection of studio-grade effects, including EQs, compressors, reverbs, multi-effects, and more
• Stereo XLR master out and eight TRS direct outs provide balanced connections to a PA mixer
• Integrated 32-channel USB audio/MIDI interface for professional computer music production
• Mix input for drumming with music from a smartphone or laptop
• Import your own WAV samples via an SD card
• Built-in practice functions for developing drumming skills

Specifications
Drum Kits
- 100 (Preset: More than 50)

Instruments
- More than 900

Effect Types
- Pad Compressor: each pad
- Pad Equaliser: each pad
- Overhead Mic Simulator
- Room/Reverb
- Multi-Effects: 3 systems, 38 types
- Master Compressor
- Master Equaliser

User Sample Import
- Number of User Sample: Maximum 500 (includes factory preloaded user samples)
- Sound Length (total): 24 minutes in mono, 12 minutes in stereo
- File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

Song Player (SD Card)
- Audio File: WAV (44.1 kHz, 16/24 bits), MP3

Recorder
- Recording Method: Realtime
- Maximum Note Storage: approx. 40,000 notes
- Export File Format: WAV (44.1 kHz, 16 bits), SMF

Display
- Graphic LCD 256 x 80 dots
- Trigger Activity Indicator (LED)

Faders
- 8 (kick, snare, toms, hi-hat, crash, ride, aux, ambience)

External Memory
- SD Card (SDHC supported)

Connectors
- Trigger In Jack x 14: 1/4-inch TRS phone type (exclusion use with digital pad)
- Digital Trigger In Port x 3: USB A type
- Master Out (unbalanced) Jacks (L/MONO, R): 1/4-inch phone type
- Master Out (balanced) Jacks (L, R): XLR type, balanced
- Direct Out (balanced) Jack x 8: 1/4-inch TRS phone type, balanced
- Phones Jack x 2: stereo 1/4-inch phone type, stereo miniature phone type
- Mix In Jack x 2: stereo 1/4-inch phone type, stereo miniature phone type
- MIDI (in,out/thru) connectors
- USB Computer port: USB B type (USB Hi-Speed audio/MIDI, Mass Storage Class)
- Foot Switch jack: 1/4-inch TRS phone type
- AC In Jack

Number of USB Audio Record/Playback Channels
- Sampling Rate (original): 44.1 kHz
- Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
- Record: 32 channels
- Playback: 32 channels

*USB Audio is required the using vender driver and switched vender mode.
*On Windows, recording is 10 channels and playback is 4 channels for audio drivers other than ASIO.

Power Supply
- AC 117 V, AC 220 V, AC 230 V, AC 240 V

Power Consumption
- 30 W
