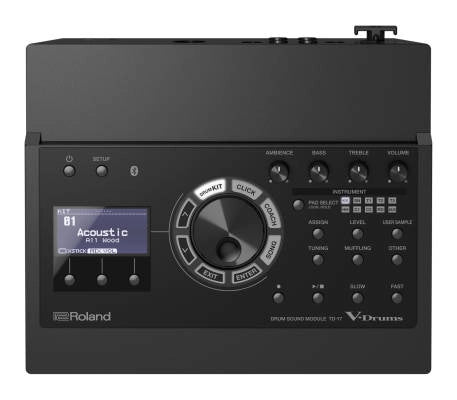

Roland - TD-17 Drum Sound Module

The TD-17 Sound Module offers plenty of digital advantages to improve your drumming skills. It features a sound engine inherited from the flagship TD-50, for pro-quality expressive drum sounds that can faithfully reproduce the playability of acoustic drums. An array of built-in coaching functions will track your technique, measure your progress and increase your motivation.

You can play along with your favourite tunes or watch online drum lessons while listening to the audio wirelessly -pairing your smartphone with the TD-17 via Bluetooth, which makes your daily practising fun. With a host of interactive drumming features, the TD-17 module can help you to become a better drummer, faster.

Features
• Expressive and dynamic sound inherited from Prismatic Sound modelling technology of the TD-50
• High-speed response with wider dynamic range, high-resolution of tonal changes
• Authentic hi-hat sound with smooth open-to-closed pedal control, and bow/edge tonal detection
• Open and closed rim-shots detected for authentic snare technique
• Bluetooth audio for wirelessly streaming audio from your smartphone to the TD-17 module
• Coach functions support your daily exercise and warm-up routines
• Playback audio files from SD card
• Preset drum kits cover a wide range of music genres, with further sound customisation possible
• Ambience control and variation, to emulate venues from small stages to large halls
• Import user samples, assign them to any pad and layer them with internal sounds for deeper customisation and creating individual drum sounds
• Compatible with Melodics for V-Drums to improve your sense of time
• 2-trigger inputs for additional pads or pedals
• USB port for connecting to your computer for music production

Specifications
Drum Kits
- 100 (Preset: 50)

Instruments
- 310

Instrument Parameters
- Level (Volume), Pan, Tuning, Muffling, Snare Buzz, Strainer

User Sample
- Internal memory size: 32M bytes
- Number of user sample: Maximum 100 (includes factory preloaded user samples)
- Sound length (total): 24 minutes in mono, 12 minutes in stereo
- File format: WAV (44.1 kHz, 16/24 bits)

Kit Effects
- Ambience: 25 types
- Multi effect: 30 types
- Pad equaliser: 3 band (Low, Mid, High), Capable to each pad

Master Effects
- Equaliser: 2 band (Bass, Treble)

Bluetooth (excluding TD-17-L) *1
- Supported standards: Bluetooth Ver 4.2
- Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
- Codec: SBC (Support to the content protection of the SCMS-T method)

Internal Songs
- 7

Song Player
- File format: WAV (44.1 kHz, 16/24 bits), MP3 *2

Recorder
- Recording Method: Realtime
- Maximum length: 60 min (Temporary recording: 3 min) *3
- File format: WAV (44.1 kHz, 16 bits)

Display
- 128 x 64 dots graphic type LCD (with backlit)

External Memory
- SD card (SDHC supported)

Connectors
- Trigger Input Connector: 1 (DB-25 type) (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control)
- Trigger In Jack: 2 (CRASH 2, AUX) (1/4-inch TRS phone type)
- Master Output Jack: 2 (L/MONO, R) (stereo 1/4 inch phone type)
- Phones Jack: 1 (stereo miniature phone type)
- Mix In Jack: 1 (stereo miniature phone type)
- MIDI Out Jack: 1
- USB Computer Jack: 1

Output Impedance
- Output Jack: 1k ohms
- Phones Jack: 94 ohms

Input Impedance
- Mix In Jack: 11k ohms

USB Computer Jack
- Speed: Hi-speed USB
- Driver mode: Generic, Vender
- Protocol: USB MIDI, USB Audio *4

USB Audio
- Sampling Rate (Original): 44.1 kHz
- Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
- Record: 2 channels (1 stereo)
- Playback: 2 channels (1 stereo)

Power Supply
- AC adaptor (DC 9 V)

Current Draw
- 490 mA

Dimensions
Width: 223 mm (8-13/16")
Depth: 196 mm (7-3/4")
Height: 65 mm (2-9/16")

Weight
0.9 kg (2 lbs) excluding AC adaptor

*1 Bluetooth function is not available for TD-17-L.
*2 Audio files must be saved on an SD card.
*3 Song recording is required SD card. The case of no inserted SD card is capable to record the temporary recording approximately 3 minutes.
*4 USB Audio is required the using vender driver and switched vender mode.
