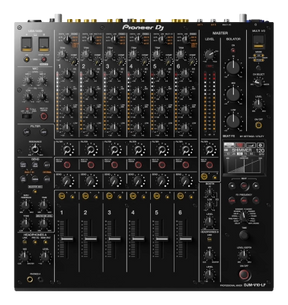

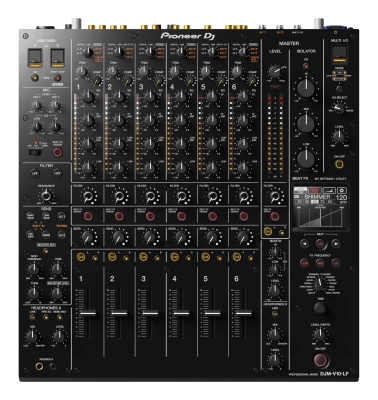

Pioneer DJ - DJM-V10-LF 6-Channel Professional DJ Mixer with Long Faders

Craft your sound
The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes.

The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely. What's more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.

All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has become popular with the most creative DJs since its release in early 2020. The 6-channel unit is loaded with unique features and produces warm audio with energy and presence.

Features
60 mm shaft slide faders
If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF. The crossfader from the DJM-V10 has been removed and brand-new 60 mm shaft slide faders have replaced the 45 mm ones on the channels.

Unique fader curve
The unit includes two classic fader curves from its predecessor - optimized to make the most of the extra length - plus an all-new curve preset that enables you to make fine adjustments to the volume of each channel and precisely control the output sound.

Elite sound quality
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.

6 channels with a wide range of inputs
You're free to create your perfect setup with 6 channels and a host of different input types.

4-BAND EQ and compressor
Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

Effects for more creative expression
The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless.

What's in the box
• DJM-V10-LF
• Power Cord
• Quick Start Guide
• Precautions for Use

Specifications
Main
MIDI Control: Full assignable MIDI controls
ProDJ Link: Yes
Booth EQ: Yes
P-LOCK Fader Caps: Yes
Auto Standby: Yes
DVS Control
• rekordbox
• Serato DJ Pro
• TRAKTOR PRO 3
Sampling Rate: 96 kHz
Dimensions: 17.23" x 4.25" x 18.39"
Weight: 26.24 lb
Frequency Range: 20 - 40000 Hz
A/D Converter: 32 bit
D/A Converter: 32 bit
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
S/N Ratio Mic: 79 dB
Distortion: < 0.005 % (LINE)
Channels:
EQ: 4 band
EQ Range: [Hi/Low] -? ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP: Yes
Performance Control
Channels: 6
Filter: HPF / LPF
SEND: Short Delay, Long Delay, Dub Echo, Reverb, 2 Externals (1/4-inch TS jack)
MULTI I/O
• 1/4-inch jack
• USB (Type A)
Beat FX: Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Shimmer, Flanger, Phaser, Filter, Trans, Roll, Pitch, Vinyl BrakeFX Frequency: Yes
X-PAD: Yes
rekordbox Quantize: Yes
Master Isolator: Yes
Mic
Mic Connection
• XLR / 1/4-inch Jack Combo
• 1/4-inch TRS Jack
Talkover: 3 Position Switch
Talkover Attenuator: Yes
Terminals
Inputs
• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)
Send/Return
• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)
LAN: 1
USB
• 2x USB-B ports
• 1x USB-A port
Outputs
• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)
