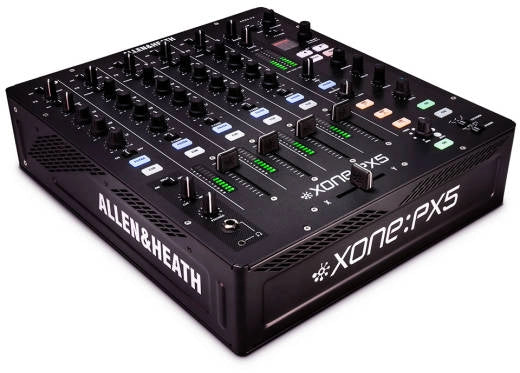

Allen & Heath - Xone:PX5 4+1 Channel DJ Performance Mixer

Xone:PX5 is a 4+1 channel mixer, equipped with the legendary Xone filter, 3 band EQ on all channels and an intuitive layout.

• Integrated 20 Channel USB Sound Card
• High Resolution: 24-Bit / 96 kHz
• X:LINK for XONE:K Series controllers
• 4-Channels with Phono/USB/Line inputs
• 3-Band EQ
• X:FX Send and Return external FX loop

Connect your laptop or computer to the premium internal 20 channel 24bit 96kHz USB2 soundcard for easy integration into digital DJ workflows, plus plug n play connection via X:LINK to Xone:K series controllers for expanded MIDI control.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to an Innofader Pro 2 for ultimate crossfader performance.

The versatile Send/Return feature allowing for the connection of external FX hardware with both Send/Return and Master Insert mode connections (Line or Hi-Z) equips Xone:PX5 for numerous enhanced setup scenarios. Each channel has its own dedicated send control for external FX processing and can also be routed to the internal Xone:FX engine.

No matter what your mixing style, Xone:PX5 combines a modern approach to DJing with all the tools required for creating your own individual sound.

KEY FEATURES:

HIGH QUALITY INTERNAL SOUNDCARD
Xone:PX5 incorporates a high specification 20 Channel 96kHz, 24bit USB Soundcard, allowing it to be seamlessly integrated into digital DJ workflows.

XONE:FX
Xone:PX5 features the Xone:Xcite FX suite, a new breed of FX specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing.

XONE FILTER SYSTEM
The Xone filter is a legend in the DJ booth. Xone:PX5s filter includes HPF, BPF, LPF, resonance control and frequency sweep, plus the option to route the Aux channel and External Return to the filter.

XONE:SYNC MIDI CLOCK ENGINE
Xone:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers which can be connected via 1/4" jack input connections (mono/stereo). Xone:PX5 can also send/receive MIDI clock information through the USB connection.

X:LINK
For the ultimate DJ setup, connect Xone:K series controllers to the Xone:PX5 over X:Link for hands-on control over your software, saving USB ports on your computer.

4+1 CHANNELS
On top of its four fully featured phono/USB/line channels, Xone:PX5 has a flexible mic / aux channel with XLR and jack connectors and full 3 band EQ. If you don't perform with mics, the additional inputs allow this channel to be used as an extra stereo music source or USB Return channel.

INNOFADER COMPATIBLE
Upgrade to an Innofader Pro 2 crossfader (available separately) for ultimate performance. Always a popular choice for scratch DJs.

TECHNICAL SPECS:

Type: Analog
Channels: 4 + 1
EQ: 3-band / Total Kill (CH 1-4 + CH A)
USB Soundcard:
- 20 Channel (10 in / 10 out)
- USB2 / Class Compliant
- 24bit / 96kHz
- 1 x MIDI IN
- 1 x MIDI Out
Line Inputs:
- 4 x RCA (CH 1-4)
- 1 x 1/4? TRS (CH A) Mono/Stereo
Phono Inputs:
- 4 x RCA (CH 1-4)
- LN/PH Switch for DVS
USB Inputs: 5 x USB (CH 1-4 + CH A)
Mic Input: 1 x XLR
Master Output: 1 x XLR (Balanced)
Master 2 Output: 1 x RCA (Un-balanced)
Booth Output: 1 x 1/4? TRS
Record Output: 1 x RCA (Un-balanced)
Master Insert: 1 x 1/4? TRS
MIDI Sync/Out: 1 x 5-Pin DIN
DIN Offset Control
Send/Return I/O:
- 1 x 1/4? TRS Send
- 1 x 1/4? TRS Return
- 1 x LN/Hi-Z Switch
Internal Xone:FX: Yes
Hybrid FX Mode: Yes (Internal < Dual > External)
FX Send: 1 x Pre/Post Selectable (CH 1-4 + CH A)
Filter:
- 1 x VCF Filter
- HPF / BPF / LPF
- Adjustable Frequency & Resonance
- Assignable CH 1-4 + CH A + External Return
X-Link 1 x RJ45
Headphones
- 1 x 1/4?
- 1 x 3.5mm
Split Cue Monitoring
Channel Faders: 60mm VCA / Replaceable
Chanel Meters: 12 Segment LED
Channel Fader: Curve 3 Types
X-Fader: 45mm VCA / Replaceable / Innofader Compatible
X-Fader: Curve Settings 3 Types
MIDI Clock:
- Send + Receive
- Start / Stop / Pause / Tempo Bend (-/+)
MIDI Assignable: Yes (MIDI CC / MIDI Notes)
BPM Detection: Auto / Manual / Tap Tempo
Earth Ground Terminals x 2
Headroom: 20dB
AC Mains:
- 100 to 240V
- AC 50/60Hz
- Consumption 35W max
Mains Adaptor: 3 pin IEC socket with cable clamp
Fuse Rating: 250V AC T1AL 20mm

Dimensions:
- Height: 10.92 cm / 4.3?
- Width: 32.0 cm / 12.6?
- Depth: 37.6 cm / 14.8?
Weight 11.5 lbs.
