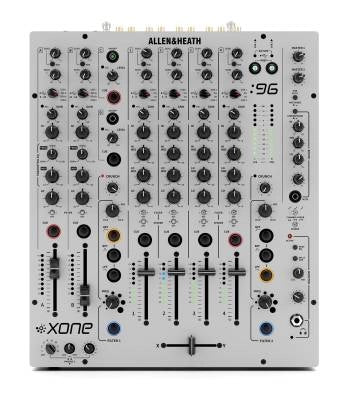

Allen & Heath - Xone:96 6+2-channel Analogue DJ Mixer w/Dual 32-bit USB Soundcards

Xone:96 enables users to easily connect their entire rig, from laptops and turntables, to pedals, synths and drum machines. There are two dedicated FX sends, four stereo input channels with 4-band EQ, two stereo inputs with all-new 3-band parametric EQ, two auxiliary stereo return channels and a separate master insert for outboard FX hardware.

Underlining the professional club credentials of Xone:96 is a new, second and completely independent headphone cueing system, which taken alongside the dual soundcard, allows for smoother set transitions and back-to-back performances. Dedicated booth outputs using a new 3-band booth EQ facilitate the tuning of a venue's monitor rig and artists using complex, hybrid, multi-channel software will celebrate the simplicity of using a single USB to connect their computer to Xone:96.

As would be expected, Xone:96 features industrial build quality, which can be relied upon to comfortably withstand the demands of packed schedules, night after night.

Key Features

• Legendary Xone analogue design
• 6+2 channel layout
• Dual 24 channel, 32Bit/96kHz, Hi-Speed USB internal soundcards with MIDI Control & X:Link connectivity
• Traktor Scratch Certified
• Classic dual XONE:VCF Voltage Controlled Filters now with added CRUNCH distortion
• Four stereo input channels with refined XONE 4-BAND EQ
• Two independent CUE systems allow two DJ's to monitor independently
• innoFADER Cross Fader and new custom designed 60mm linear VCA performance channel faders

Specifications

Type: Analogue
Channels: 6 + 2
EQ:
- Channel 1-4, 4-Band EQ
- Channel A-B, 3-Band Parametric EQ
USB Soundcards:
- Dual 24 Channel (12 in / 12 out)
- Hi-Speed USB2.0 / Mac Class Compliant
- 32bit / 96kHz
- MIDI over USB
Line Inputs:
- 4 x RCA (CH 1-4)
- 4 x 1/4" TRS (CH A-D) Mono/Stereo
Phono Inputs:
- 4 x RCA (CH 1-4)
- LN/PH Switch for DVS
USB Inputs: 6 x USB (CH 1-4 + CH A CH B)
Mic Input: 2 x XLR
Master Output: 1 x XLR (Balanced)
Master 2 Output: 1 x 1/4" TRS (Balanced)
Booth Output: 1 x 1/4" TRS (Balanced)
Record Output: 1 x RCA (Un-balanced)
Master Insert: 1 x 1/4" TRS
MIDI Out: 1 x 5-Pin DIN
Send/Return I/O:
- 2 x 1/4? TRS Send
- 4 x 1/4? TRS Return
- 1 x LN/Hi-Z Switch (SND1/RTNA)
Filter
- 2 x VCF Filter
- HPF / BPF / LPF
- Adjustable Frequency & Resonance
- Assignable CH 1-4 + CH A-B
- CRUNCH (Controlled Harmonic Signal Distortion)
X-Link: 1 x RJ45
Headphones
- 2 x 1/4"
- 2 x 3.5mm
- Split Cue Monitoring
Channel Faders: 60mm VCA / Replaceable
Chanel Meters: 9 Segment LED
Channel Fader Curve: 3 Types
X-Fader: InnoFADER / 45mm VCA / Replaceable
X-Fader: Curve 3 Types
Earth Ground Terminals: x 2
Headroom: 20dB
AC Mains
- 100 to 240V
- AC 50/60Hz
- Consumption 45W max
Mains Adaptor: 3 pin IEC socket

Dimensions (W x D x H): 336mm x 410mm x 109mm (13.25" x 16.2" x 4.3")
Weight: 7 kg (15.4 lbs)
