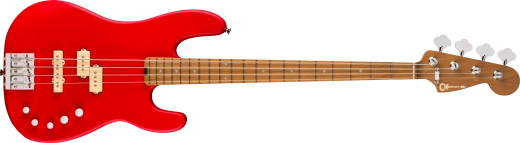

Charvel Guitars - Pro-Mod San Dimas Bass PJ IV, Caramelized Maple Fingerboard - Satin Ferrari Red

The sleek body shape is a familiar one - straight from the original Charvel San Dimas basses of late 1970s, with the deeper cutaway that gave adventurous bassists effortless upper-register access.

The super-thin bolt-on maple Charvel speed neck is crafted in the original style, with a gorgeous caramelized treatment, graphite reinforcement and heel-mount truss rod wheel for easy adjustment. The 12"-16" compound radius caramelized maple fingerboard gradually flattens from nut to heel for fast, smooth playing, and has rolled edges, 20 jumbo frets and Luminlay® side dots.

And like the originals, the Pro-Mod San Dimas® Bass PJ IV MAH features the powerhouse voice of DiMarzio® pickups - a Model J™ at the bridge for well-rounded punch and a Model P® in the middle for warm and fat tone with a mid-range growl when pushed. Versatile electronics include three-band active EQ, pickup blend control and a master volume control with push/pull selector. The push/pull selector eliminates the risk of losing sound due to a dead battery as a quick pull on the volume knob bypasses the EQ's active circuit and regains sound from the bass without the use of battery power.

A Charvel HiMass™ bridge, Graph Tech® TUSQ® XL nut and open-gear tuners combine for stellar tuning stability with improved note punch and sustain.

This 4-string bass is presented in a Natural Mahogany and Satin Ferrari Red finishes with chrome hardware, cream pickup covers and licensed Fender® Precision Bass® headstock shape.

Features
• Genuine Mahogany body
• Caramelized maple neck
• 12"-16" compound radius caramelized maple fingerboard
• DiMarzio pickups
• Luminlay side-dots
• Volume
• Blend
• 3-band EQ
• Charvel Hi-Mass bridge

Specifications
Neck
HEADSTOCK: Licensed Fender® Precision Bass®
NECK MATERIAL: Caramelized Maple
NECK FINISH: Hand-Rubbed Satin Urethane
NECK SHAPE: Speed Neck with Rolled Fingerboard Edges
NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement
FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL: Caramelized Maple
POSITION INLAYS: Cream Dot
SIDE DOTS: Luminlay®
NUMBER OF FRETS: 20
TRUSS ROD: Dual-Action with Wheel
TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel
STRING NUT: Graph Tech TUSQ XL
NUT WIDTH: 1.5" (38.1 mm)
NUT MATERIAL: Graph Tech TUSQ XL

Body
BODY: Mahogany
BODY FINISH: Satin
BODY SHAPE: San Dimas® Bass
BODY STYLE: Solid Body
BODY MATERIAL: Mahogany

Hardware
BRIDGE: Charvel® HiMass™
PICKUP COVERS: Cream
CONTROL KNOBS: Dome-Style
HARDWARE FINISH: Chrome
TUNING MACHINES: Charvel® Open-Gear
STRING TREES: Vintage-Style Disc
STRINGS: Nickel Plated Steel (.045-.100 Gauges)
NECK PLATE: 4-Bolt Standard
STRAP BUTTONS: Standard

Electronics
BRIDGE PICKUP: DiMarzio® Model J™ DP123
MIDDLE PICKUP: DiMarzio® Model P® DP122
PICKUP CONFIGURATION: PJ
CONTROLS: Volume (Push/Pull Selector for Active/Passive Options), Blend, 3-Band EQ (Active Only)
SWITCHING: None
SPECIAL ELECTRONICS: Active Electronics
