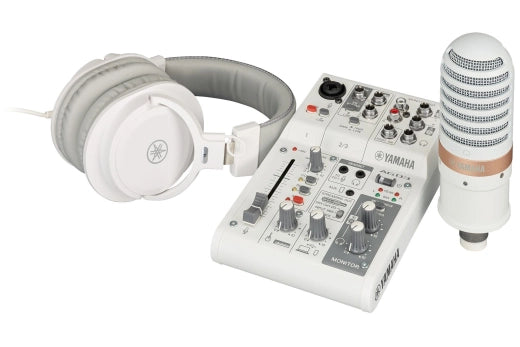

Yamaha - AG03MK2 LSPK USB Loopback Live Streaming Kit - White
Yamaha - AG03MK2 LSPK USB Loopback Live Streaming Kit - White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
50 years of expertise
50 years of expertise
Over 50 years of expertise and an exceptional 4.8 ★ rating on Google. Our reputation is built on your satisfaction. We'll be there for you whenever you need us.
Shipping
Shipping
Shipping is free for all purchases of $249 or more.
Delivery policy
BEST PRICE GUARANTEE!
If you find the same new, in-stock product offered by an authorized retailer at a lower price, we promise to match that price.
Payment and security
Payment methods
Your payment information is handled securely. We do not store or have access to your credit card details.
Description
The AG03MK2 LSPK (Live Streaming Package) is a full-streaming setup that includes, and centers around, an AG03MK2 3-channel mixer the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.
Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.
Features
• New design with two models in black and white
• AG03MK2: 3-channel Live Streaming mixer with USB audio interface
• YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
• YH-MT1: Studio-quality headphones
• XLR microphone cable (3 m, Black)
AG03MK2 Specifications
Input Channels:
- Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power)
- Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- USB: 1
Output Channels:
- PHONES: 1 - PHONES / HEADSET PHONES
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- MONITOR OUT: 2 - L/R Stereo: Phone, RCA
- USB: 1
Bus: 1 Stereo
Functions:
- MUTE button x 1
- PAD button x 2
- HI-Z button x 1
- STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK)
- MIX MINUS MIC (ON / OFF)
Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimension WxHxD: 126 x 63 x 201 mm
Weight: 0.8 kg
YCM01 Specifications
Microphone Unit: Back electret condenser type
Polar Pattern: Cardioid
Address Type: Side
Frequency Response: 30 Hz - 20 kHz
Max Input SPL: 130 dB (THD ? 1.0 ? at 1 kHz)
Sensitivity: -37 dB 3 dB (0 dB=1V/Pa, at 1kHz)
Connector: XLR
Dimensions (Microphone Only): ?55 x 166 mm (?2.2" x 6.5")
Weight (Microphone Only): 0.4 kg (0.9 lbs)
Included Accessories: Microphone stand adaptor x 1, Microphone pouch x 1, Owners manual, Technical specifications
