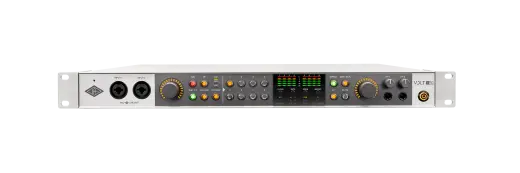

Universal Audio - Volt 876 USB Recording Studio

Meet legendary analog sound for the whole band.
Volt 876 USB Recording Studio gives serious music producers a next-generation 32-bit / 192 kHz audio interface with eight onboard Vintage preamps and classic 1176-style compressors right on its front panel, providing big analog studio sound to every mic and instrument you connect.

Built by the same team behind the legendary Apollo interfaces, Volt 876 delivers a beautifully integrated recording experience, including full recall of interface settings, mobile iPhone or iPad recording, an award-winning suite of UAD plug-ins and instruments, and UA's breakthrough LUNA Digital Audio Workstation with AI-powered smart recording tools.

Record your Music with Best-in-Class 32-bit Audio
From the team that brought you the game-changing Apollo interface, Volt 876 delivers next-gen 32-bit / 192 kHz sound quality with eight preamps and compressors - perfect for recording larger groups - with more character and tone than any USB interface in its class.

Capture Legendary Sounds with Eight Vintage Mic Preamps
There's a reason UA's 610 tube mic preamp has been heard on records from Ray Charles to Van Halen to Adele - its warmth and presence are unmatched. Volt 876 gives you the same iconic preamp sound using selectable Vintage mode - UA's exclusive tube emulation circuitry that gives your sessions the sound of a studio classic.

Get 1176-Style Compression Tuned for Voice, Guitars, and More
Add album-ready punch and presence with Volt 876's eight onboard 76 Compressors - an innovative analog circuit inspired by UA's famous 1176 Limiting Amplifier. The 76 Compressor features presets to tame voice, guitars, synths, and drums (fast mode). So you can just plug in, pick a setting, and sound great.

All the Connectivity Youll Ever Need with 24 x 28 I/O
Volt 876 gives you 8 x 8 analog connections for mics, instruments, and studio gear, plus two front-panel mic / line inputs with switchable Hi-Z for easy D.I. recording. Need more? ADAT I/O connections let you link up to three Volt 876s to create a 24-channel recording system, or expand Apollo and other ADAT-equipped studios.

Includes UAD Producer Suite - Premium Plug-Ins & Instruments
Volt 876 includes UAD Producer Suite, a premium collection of UAD plug-in titles - from Teletronix LA-2A and UA 1176 compressors to Pultec EQs, PolyMAX Synth, and the Showtime '64 Guitar Amp - giving you the tones of classic studio gear and inspiring instruments right out of the box.

Use with LUNA for Analog Studio Sound and Smart AI-powered Tools
Volt 876 works with all major DAWs. But when you pair it with UA's LUNA DAW you get the incredible sound of an analog studio with powerful hardware-software integration, unlimited tracks, smart AI-powered tools - including "Hey Luna" Voice Control, Instrument Detection, and Tempo Listen - that make recording easier.

Save and Recall All Your Interface Settings
Using the UAD Console app or LUNA, Volt 876 gives you a host of time-saving features, including Assistive Auto-Gain that automatically sets your recording levels, and two low-latency cue mixes with talkback. Plus, you can save your 876's front-panel settings and cue mixes for instant session recall.

iPad & iPhone Mobile-Recording Ready
Recording a big remote session? Plug Volt 876 into your iPad or iPhone, and you can easily create beats and samples, record your band's rehearsals, and edit songs anywhere.

Features
• 24-in / 28-out USB audio interface with eight preamps and cutting-edge 32-bit / 192 kHz audio conversion
• Vintage Mic Preamp mode on every channel for recording your voice, guitar, synths, or band with the rich, full sound of an iconic UA 610 tube preamp
• UA 76 Compressors on every channel to add clarity and punch to vocals, drums, instruments, and other sources with analog circuit based on UA's renowned 1176
• Digitally-controlled mic preamps with Assistive Auto-Gain and full session recall with UAD Console app and LUNA Digital Audio Workstation
• 16-in / 16-out ADAT connectivity for digital expansion and linking of up to three Volt 876 interfaces to form the ultimate 24 x 28 recording system
• Standalone ADAT mode to connect Volt 876 to third-party interfaces or Apollo over ADAT as an 8 x 8 I/O preamp expander
• Onboard talkback microphone for effortless studio communication
• Realtime direct monitoring with dedicated front panel controls, plus two stereo low-latency cue mixes when used with UAD Console or LUNA DAW
• Two studio-quality headphone amplifiers for loud, clear monitoring and effortless collaboration
• 48V phantom power for condenser microphones (selectable per channel)
• Stylish, rugged construction built to withstand years of use, with included rack ears and rubber feet for desktop or 1U rack mounting options

Specifications
Monitor Outputs
- Two stereo (Main and Alt. Monitors)
- Main (Line Out 1-2), Alt (Line Out 3-4)

Headphone Output
- Two stereo

USB
- One USB 2.0 port (USB Type-C connector)

MIDI
- In, Out (two 5-pin DIN connectors)

Digital / Optical
- Two in, Two out

ADAT (S/MUX capable)
- 16 channels @ 44.1 to 48 kHz (fs1)
- 8 channels @ 88.2 to 96 kHz (fs2)
- 4 channels @ 176.4 to 192 kHz (fs3)

S/PDIF (Toslink)
- Stereo at all sample rates

Microphone Input(s) - Channels 1-8
- Frequency Response: 20 Hz to 20 kHz, +0.1 dB
- Dynamic Range (A-weighted): 116 dB
- THD + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003%)
- Maximum Input Level: 14 dBu
- Input Impedance: 2 Kilohms
- Available Gain (Digitally-controlled): 60 dB
- Phantom Power: +48V (switchable)
- Connector Type: XLR Female, pin 2 positive

Instrument Input(s) - Channels 1-2
- Frequency Response: 20 Hz to 20 kHz, +0.04 dB
- Dynamic Range (A-weighted): 116 dB
- THD + Noise (1 kHz @ -1 dBFS): -87 dB (0.004%)
- Maximum Input Level: 12.5 dBu
- Input Impedance: 1 Megohms
- Available Gain (Digitally-controlled): 60 dB
- Connector Type: 1/4" TS unbalanced

Line Input(s) - Channels 1-8
- Frequency Response: 20 Hz to 20 kHz, +0.05 dB
- Dynamic Range (A-weighted): 116 dB
- THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
- Maximum Input Level: 22 dBu
- Input Impedance: 10 Kilohms
- Available Gain (Digitally-controlled): 60 dB
- Connector Type: 1/4" TRS balanced or TS unbalanced

Line Output(s) - Channels 1-8
- Frequency Response: 20 Hz to 20 kHz, +0.1 dB
- Dynamic Range (A-weighted): 119 dB
- THD + Noise (1 kHz @ -1 dBFS): -111 dB (0.0003%)
- Maximum Output Level: 20.2 dBu
- Output Impedance: 100 Ohms
- Connector Type: 1/4" TRS balanced or TS unbalanced

Headphone Output(s) 1-2
- Frequency Response: 20 Hz to 20 kHz, +0.2 dB
- Dynamic Range (A-weighted): 116 dB
- THD + Noise (1 kHz @ -1 dBFS into >32?): -108 dB (0.0004%)
- Maximum Output Power into 32?: 225 mW
- Maximum Output Power in 600?: 35 mW
- Connector Type: 1/4" TRS stereo unbalanced

Included UA Software
- LUNA Digital Audio Workstation (Featuring Volt 876 remote-control integration and AI-powered tools)
- Teletronix LA-2A Tube Compressor
- UA 1176 Classic FET Compressor
- Pultec Passive EQ Collection
- Century Tube Channel Strip
- Oxide Tape Recorder
- Verve Analog Machines Essentials
- Pure Plate Reverb
- Galaxy Tape Echo
- PolyMAX Synth
- Showtime '64 Tube Guitar Amp

Included 3rd Party Software
- Ableton Live Lite
- Melodyne Essential by Celemony
- Ampeg® SVT-VR Classic Bass Bundle by Plugin Alliance
- Marshall® Plexi Classic Amp Bundle by Softube
- Virtual Drummer DEEP by UJAM
- Virtual Bassist DANDY by UJAM
- LABS by Spitfire Audio
