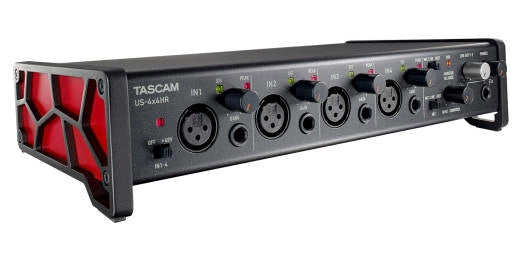

Tascam - US-4x4HR 4x4 USB-C MIDI Audio Interface

US-4x4HR - For producers building state-of-the-art music production environments
4 XLR mic inputs and 4 TRS line inputs (IN 1-2 guitar input support) audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly enhanced audio circuit.

4 mic/line input, USB bus power, and 2 headphone outputs
The US-4x4HR is equipped with 4 mic/line inputs with guitar input support on IN 1-2 plus 2 headphone outputs that can be put to use in various music/multi-media production environments such as vocal/guitar simultaneous recordings and multitrack recordings. The unit is also equipped with a USB-C port to be easily powered by USB bus power.

The US-4x4HR is equipped with 4 mic/line inputs with guitar input support on IN 1-2 plus 2 headphone outputs that can be put to use in various music/multi-media production environments such as vocal/guitar simultaneous recordings and multitrack recordings. The unit is also equipped with a USB-C port to be easily powered by USB bus power.

Ultra HDDA Mic Preamp with 192 kHz support
High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.

Zero-latency direct monitoring
Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

Interface for podcasts and live streaming
The US-4x4HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-4x4HR also supports OBS, which is popular and used worldwide.

Features
• 4-in/4-out USB audio interface
• Supports up to 24-bit/ 192kHz audio formats
• Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
• 4 XLR/TRS combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
• Combo TRS line inputs with guitar input support on IN1-2
• TRS line outputs 1-2/3-4
• Two headphone outputs
• Equipped with MIDI IN/OUT terminals
• USB Type-C connection (USB Type-A to Type-C cable included)
• Powered by USB bus power
• Zero-latency direct monitoring
• Compatible with iPad and other iOS devices
• Extensive line-up of bundled software
• Steinberg Cubase LE, Cubasis LE 3
• IK Multimedia Sample Tank 4 SE
• Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
• Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand)
• Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
• OBS support

What's Included
• US-4x4HR
• AC adapter PS-P1220E
• USB cable (Type-A to Type-C)
• DAW software installation guide
• DAW plug-in software installation guide set

System Requirements
Windows (Windows 10, Windows 8.1, Windows 7)
Compatible computers: Windows computer with a USB 2.0 (or higher) port
CPU type/speed: 2GHz or faster dual core processor (x86)
Memory: 2GB or more
Driver: ASIO ASIO2.0, WDM, MIDI
Mac (macOS Big Sur, macOS Catalina, macOS Mojave, macOS High Sierra (10.13))
Compatible computers: Mac with a USB 2.0 (or higher) port
CPU type/speed: 2GHz or faster dual core processor
Memory: 2GB or more
Driver: Core Audio, Core MIDI
iOS/iPadOS Device (iPadOS 14 , iOS 14 , iPadOS , iOS 13 , iOS 12)
Driver: Core Audio (To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold separately) is necessary.)

Specifications
Sampling frequency: 44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate: 24bit
Analog audio inputs: MIC IN: IN 1 / IN 2, IN 3 / IN 4
Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance: 2.2k ohms
Maximum input level: (GAIN:MIN): +9dBu (2.183Vrms)
Gain: 56dB
INST IN: IN 1 / IN 2
Connector: 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "INST" at MIC/LINE INST switch)
Input impedance: 1M ohms or more
Maximum input level
(GAIN:MIN): +10dBV(3.162Vrms)
Gain: 56dB
LINE IN: IN 1 / IN 2, IN 3 / IN 4
Connector: 6.3mm(1/4")TRS-jack(T?HOT, R?COLD, S?GND), BALANCED
(When set to "MIC/LINE" at MIC/LINE INST switch)
Input impedance: 10k ohms
Maximum input level: (GAIN:MIN): +20dBu(7.746Vrms)
Gain: 56dB
Analog audio outputs: LINE OUT: 1-2, 3-4
Connector: 6.3mm(1/4")TRS-jack(T?HOT, R?COLD, S?GND), BALANCED
Output impedance: 210 ohms
Nominal output level: +4dBu (1.228Vrms)
Maximum output level: +20dBu (7.746Vrms)
PHONES:
Connector: 6.3mm(1/4") stereo phone jack
Maximum output level: 45mW+45mW or more
(THD+N 0.1% or less, 32ohms loaded)
MIDI IN /OUT:
Connector: Din 5-pin
Format: Standard MIDI format
USB:
Connector: USB Type-C
Format: USB2.0 HIGH SPEED (480Mbps)
Power:
When connected PC: USB bus powered
AC Adapter (TASCAM PS-P1220E, included)
When connected iOS/iPadOS: AC Adapter (TASCAM PS-P1220E, included)
Power consumption: 2.25W
Dimensions: 296(W) 65(H) 160(D)mm (including protrusions)
Weight: 3.53lb (1.6kg)
